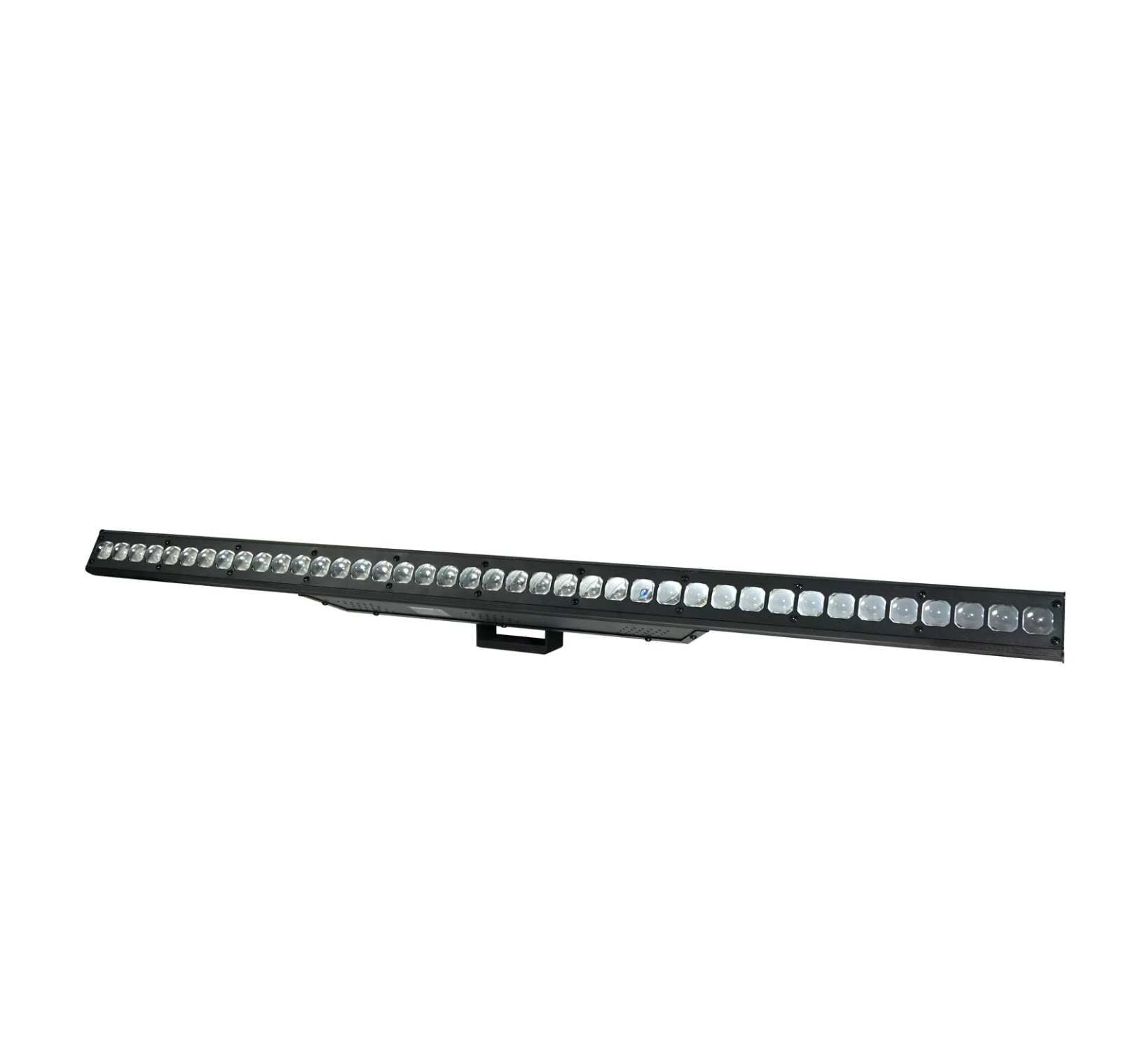

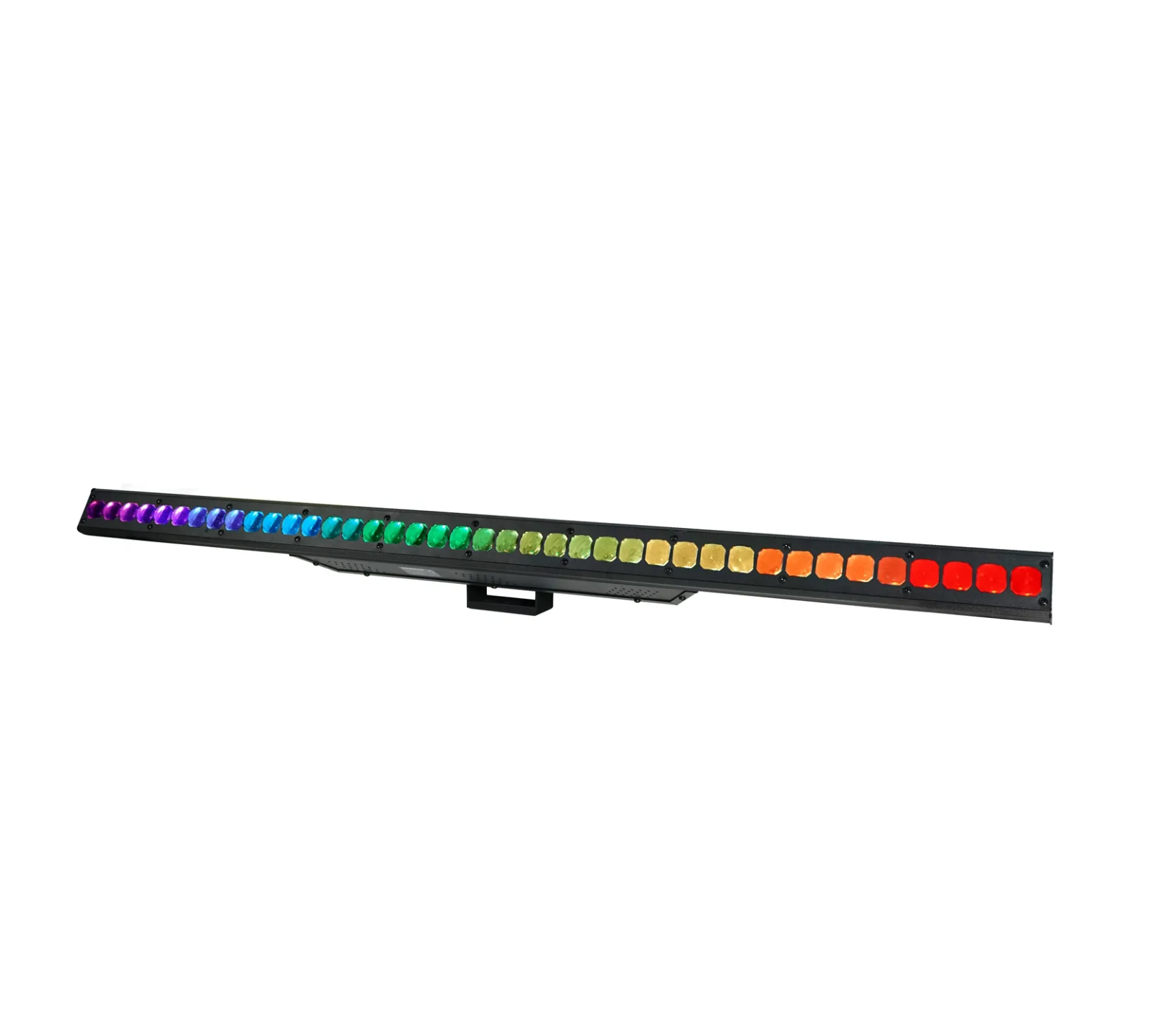

Equinox PIXELpoint Batten

The PIXELpoint multi-beam batten features 40 x 3W 3-in-1 RGB individually controllable LEDs dispensing super narrow, long throw beams for sharp mid-air effects. The unit is packed with multiple flows and chases creating stunning eye candy effects. For full creativity, DMX control can also be utilised via one of the 13 different channel modes allowing each pixel to be mapped for even more stunning visual effects. Power/DMX linking provides easy connection of multiple units.

• Beam angle: 5°

• Refresh rate: 4kHz

• Pixel mapping capabilities

• DMX channels: 3/4/6/7/8/12/13/24/25/60/61/120 or 121 selectable

• Static colour, auto, sound active and master/slave modes

• 0-100% dimming

• Variable strobe

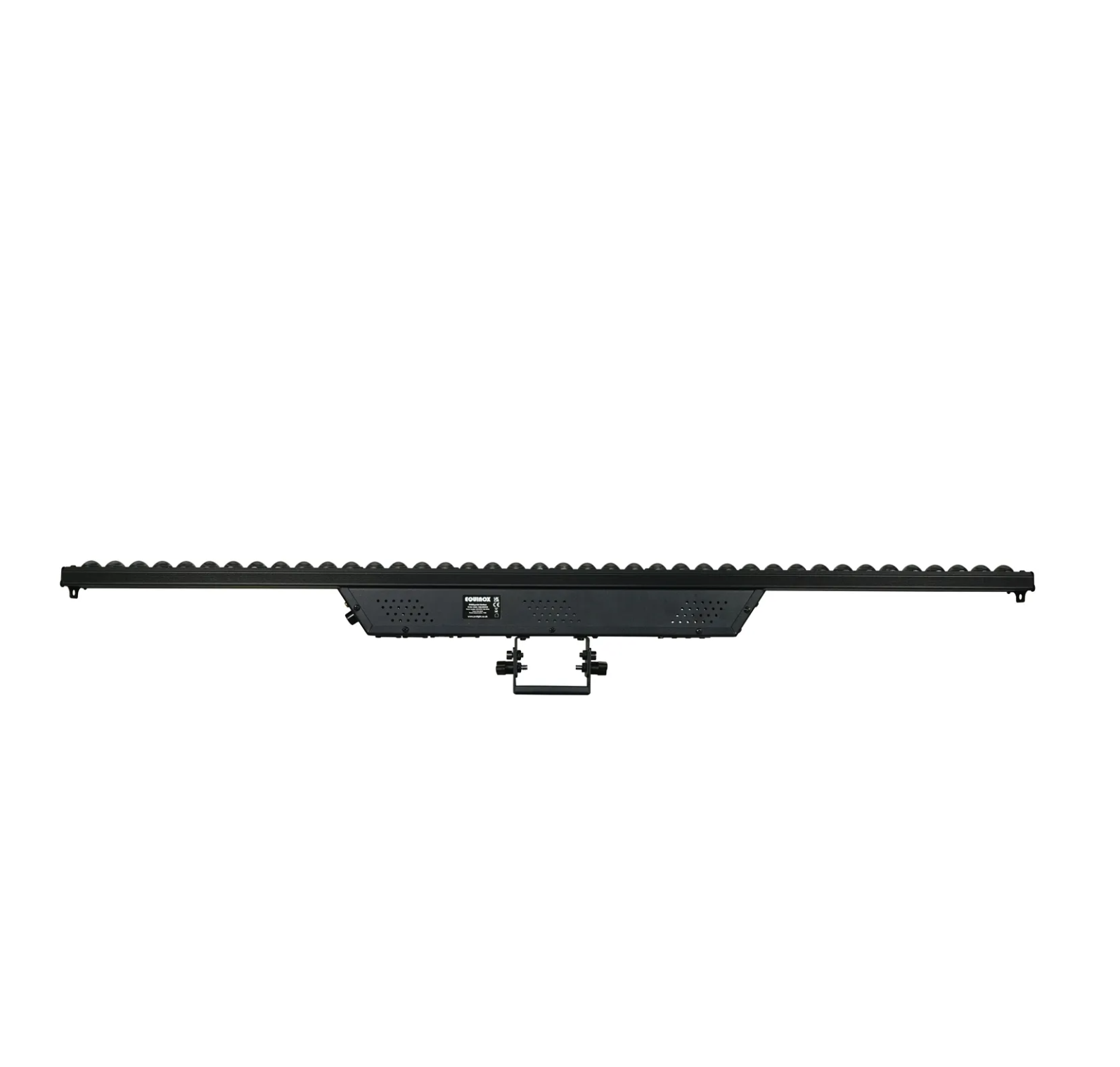

• Supplied with mounting bracket

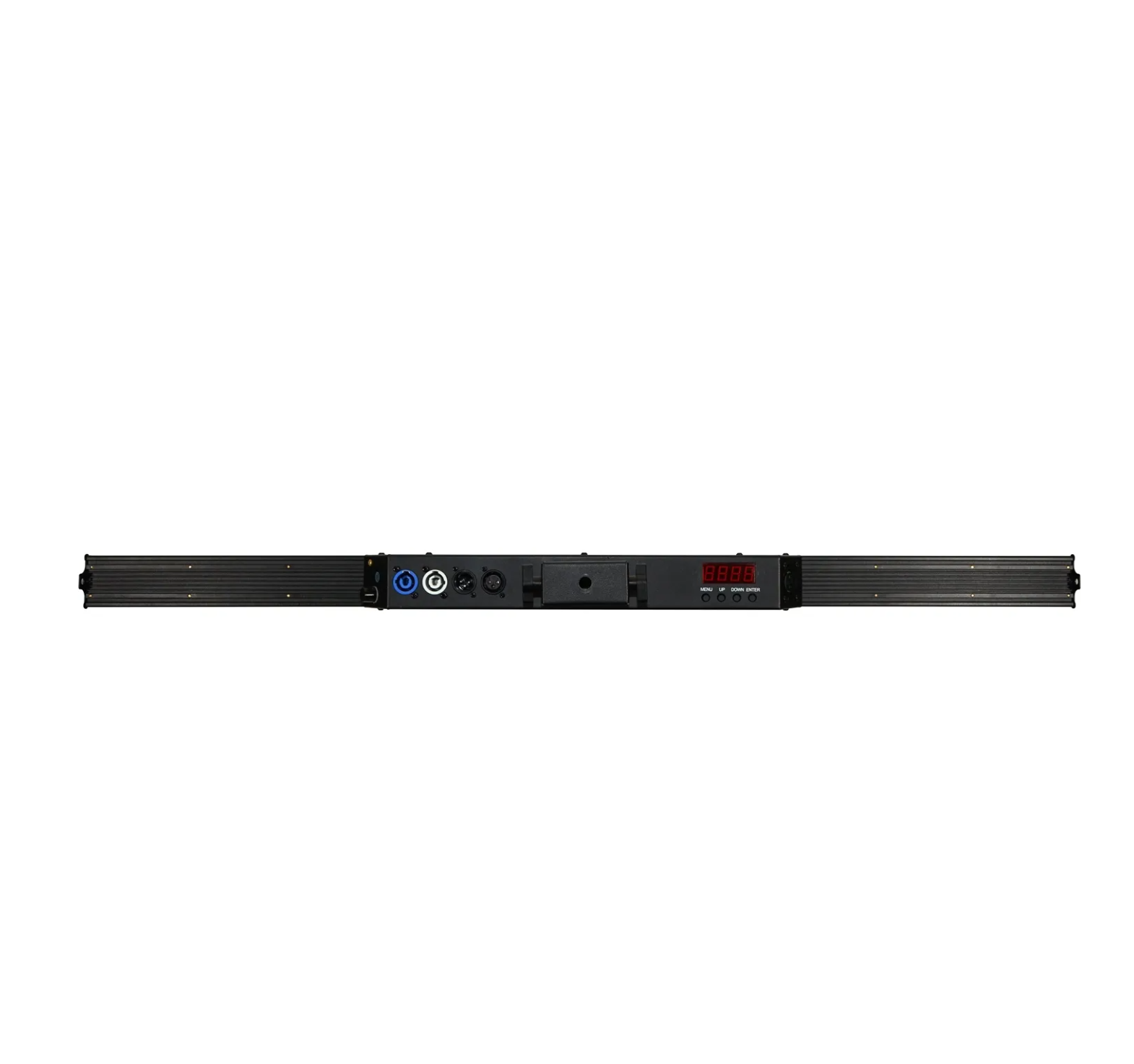

• 4 button menu with LED display

• powerCON input/output

• 3-Pin XLR input/output

• Fan cooled
