Allen & Heath AR2412 AudioRack 24in/12out
£1244.95
AR2412 is a 48kHz, 24 XLR input, 12 XLR output AudioRack, compatible with Qu, Avantis and SQ mixers, and with the AHM-64 audio matrix processor.
Adding an AR2412 to your system lets you position some or all of your I/O up to 100m from the mixer, connected over a single Cat5 cable running Allen & Heath’s dSNAKE protocol.
dSNAKE provides control to the remote preamp, and all mic preamps are scene recallable.
AR2412 also includes a Monitor port for connection to ME-1 personal mixers, and an Expander port for daisy-chaining to an AR84 or AB168.

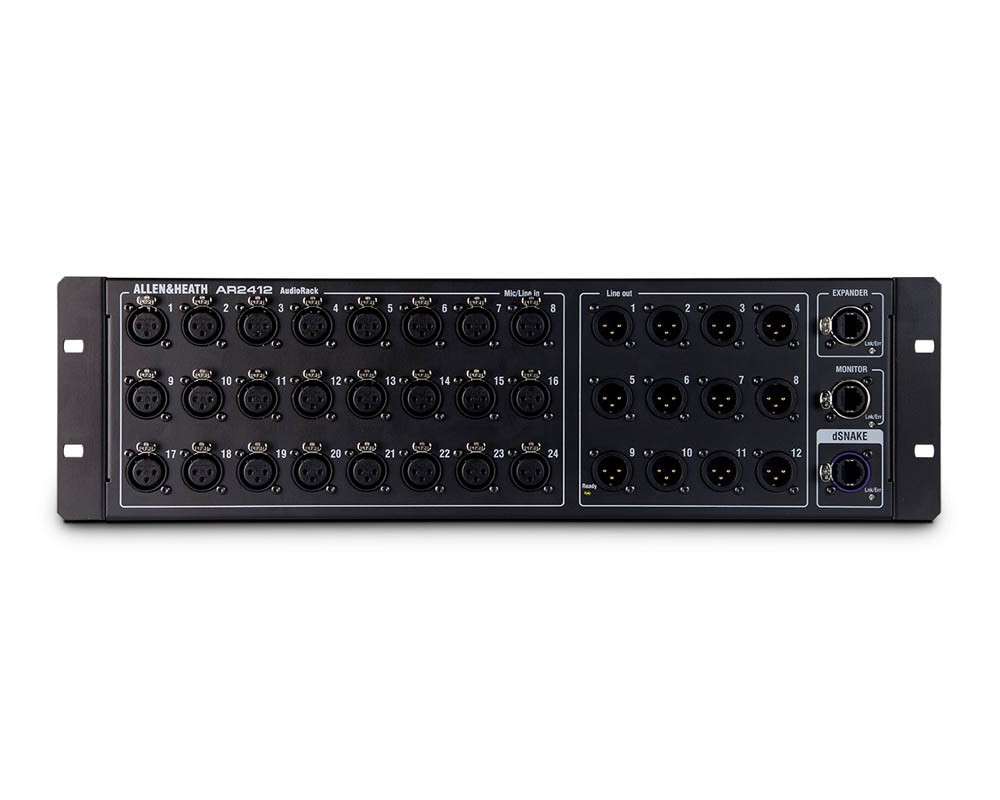

Input sockets: 24 balanced XLR inputs
Output sockets: 12 balanced XLR outputs
Expander port: Cat5 cable link
Monitor port: Cat5 cable link
dSNAKE port: Cat5 cable link
Width: 482.6mm
Depth: 206.50mm
Height: 136.70mm
Weight: 5kg
