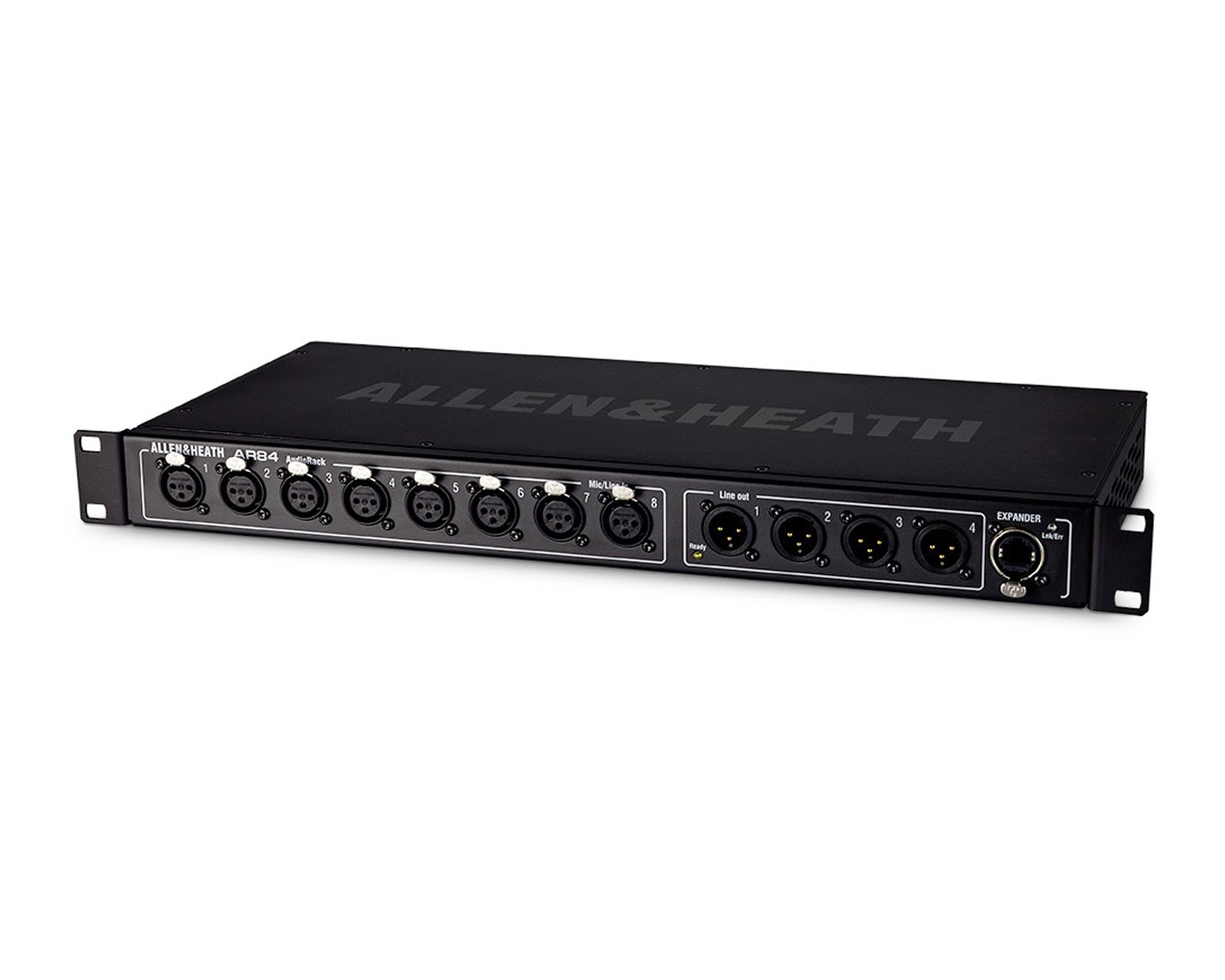

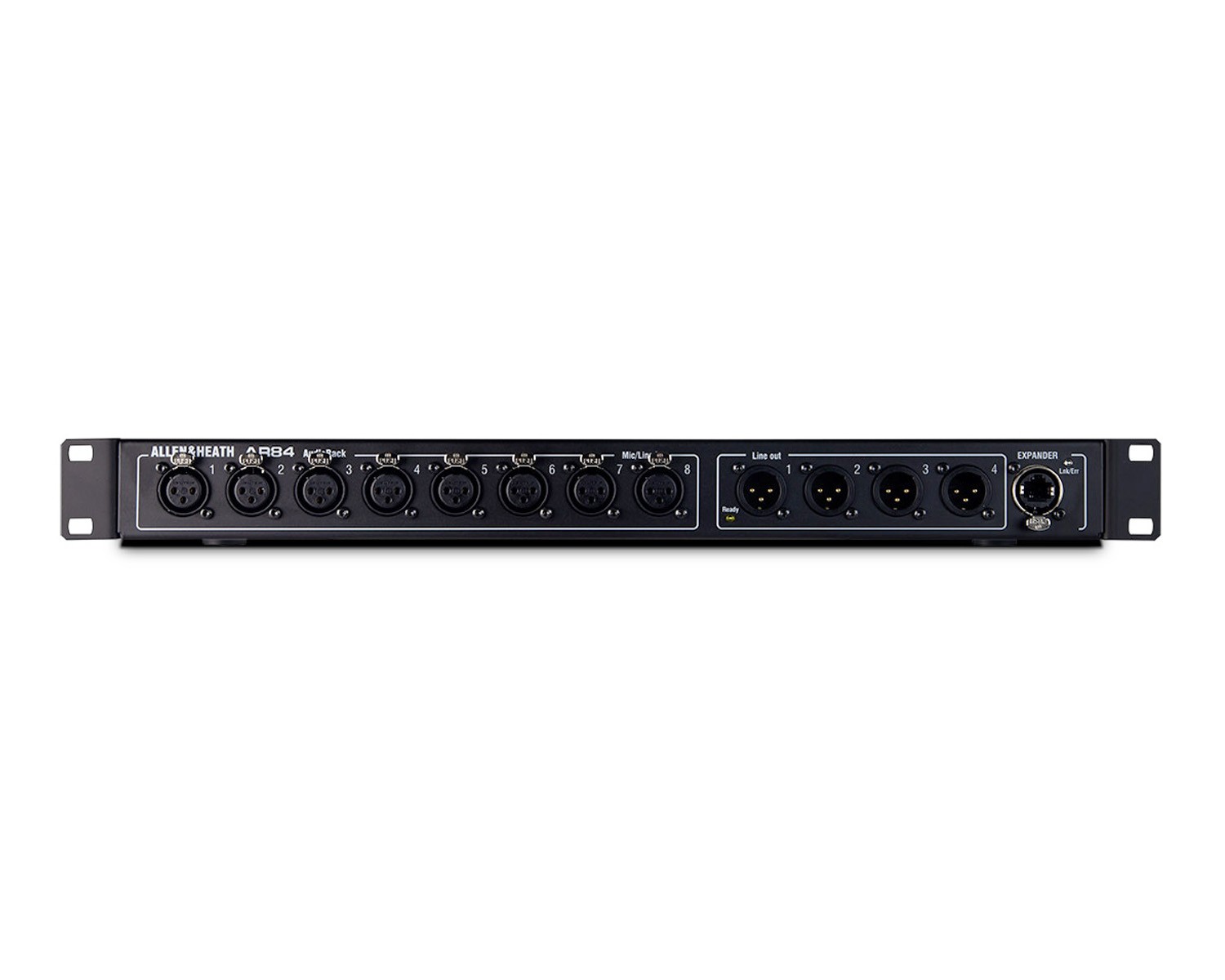

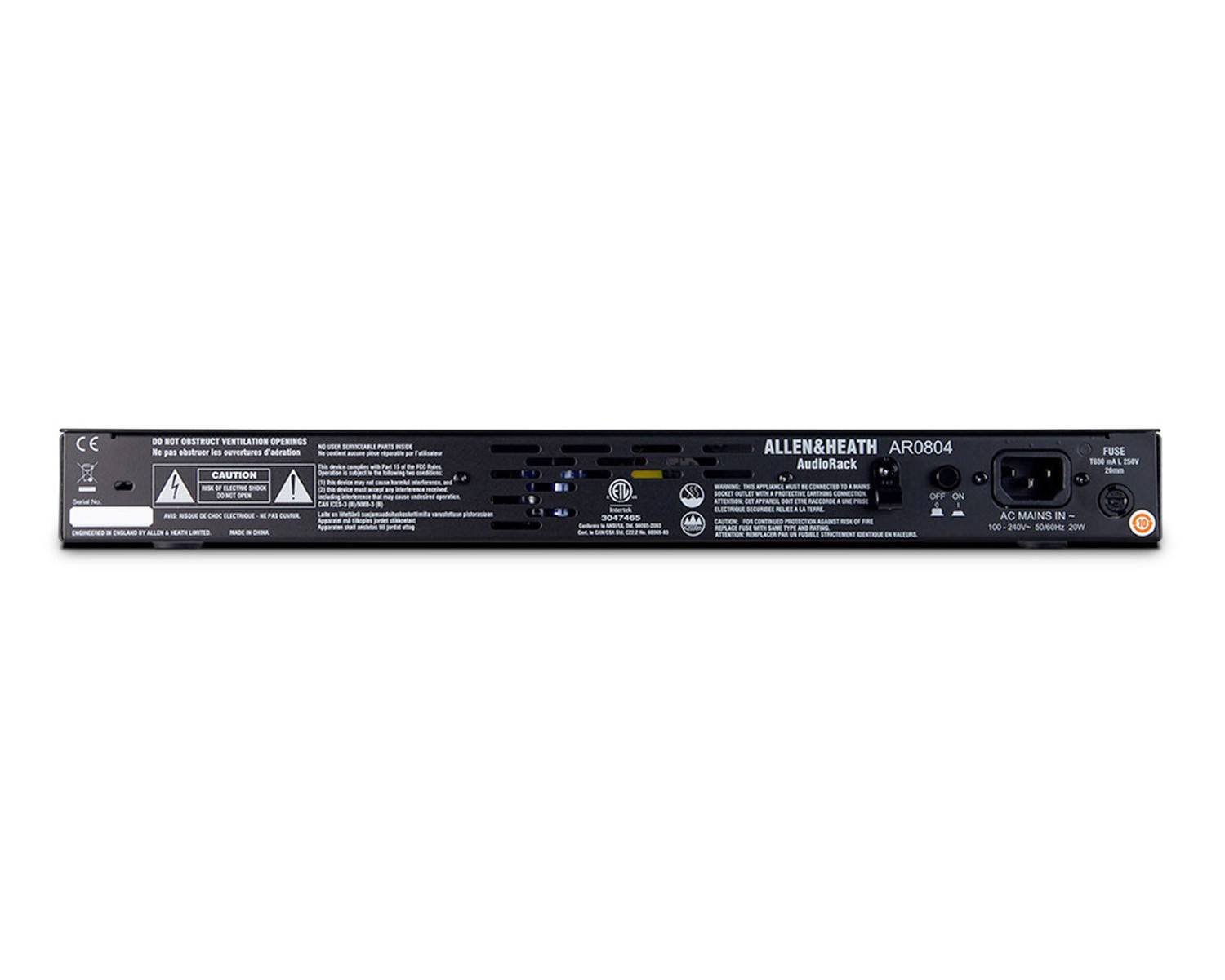

Allen & Heath AR84 Expander AudioRack
£824.95
AR84 is an 8 XLR input, 4 XLR output AudioRack, compatible Qu, Avantis and SQ mixers, and with the AHM-64 audio matrix processor.
Adding an AR84 to your system lets you position some of your I/O up to 100m from the mixer, connected over a single Cat5 cable running Allen & Heath’s dSNAKE protocol.
dSNAKE provides control to the remote preamp, and all mic preamps are scene recallable.
Width: 483mm
Depth: 220mm
Height: 48mm
Weight: 3kg
Input sockets: 8 XLR mic / line inputs
Output sockets: 4 XLR line outputs (L/R)
Expander port: Cat 5 cable link
