Allen & Heath CQ-12T Digital Mixer
£698.95

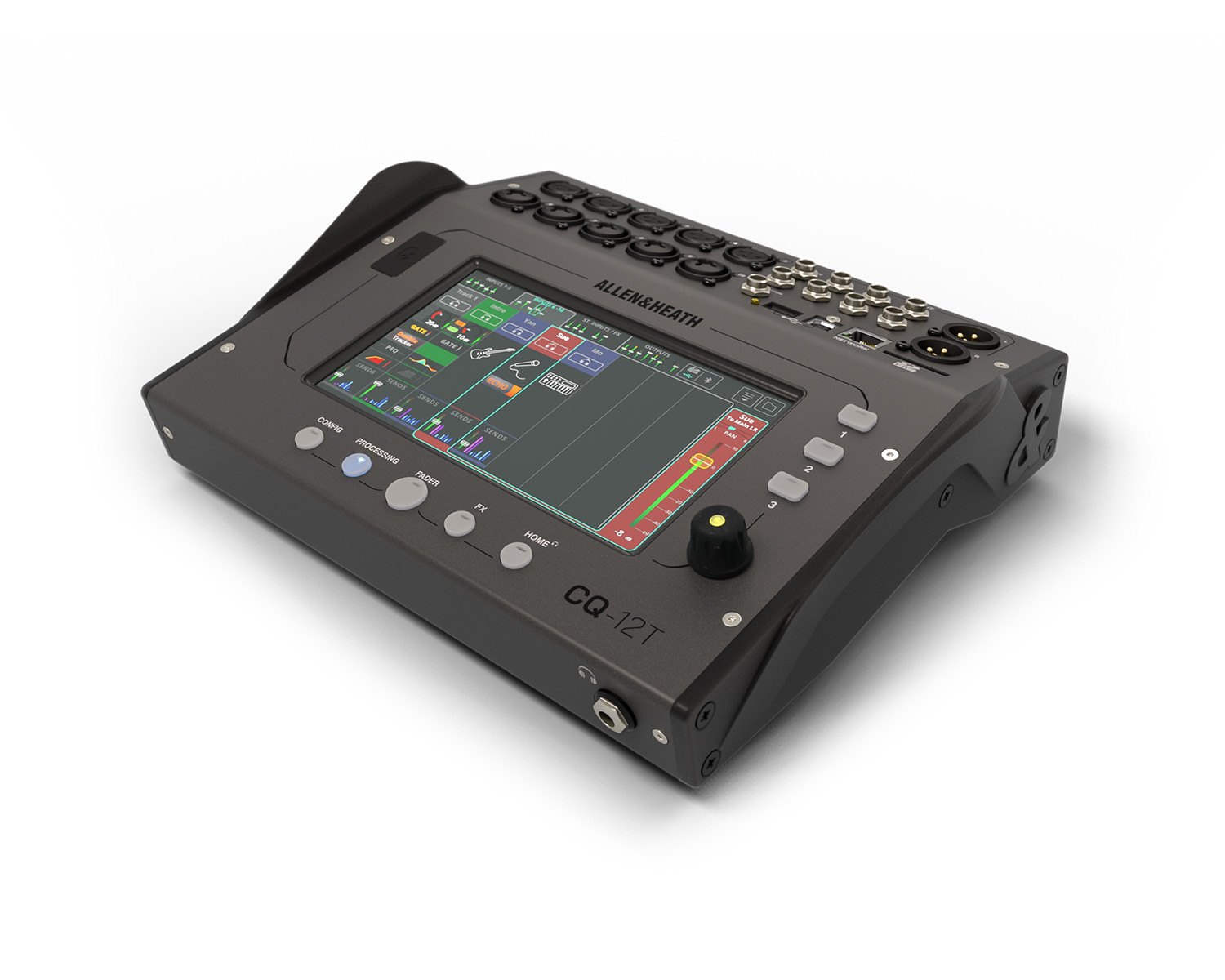

CQ-12T Ultra-Compact Digital Mixer 12in / 8out
CQ-12T is the smallest mixer in the CQ range and is ideal for home recording and streaming, band rehearsals, small gigs, and speech applications.
CQ-12T gives you all the tactile control you need to get around the interface quickly. The 7″ touchscreen and rotary control make it simple to set up and get mixing, and 3 Custom SoftKeys let you access commonly used functions at the push of a button. Connect a router or access point and the free CQ MixPad app also gives you full control of your mix from anywhere in the venue.
CQ-12T gives you all the connectivity you need to get going with 10 mic/line inputs split across 5 XLRs and 5 XLR/TRS combi sockets, plus a stereo input via a pair of 1/4″ jacks. When it comes to outputs, there’s a pair of main mix outputs on XLR plus 6 TRS jack outputs for monitor mixes – enough for the whole band!
Mic/Line Inputs: Balanced XLR, Balanced XLR/TRS Combi, fully recallable preamp
Phantom Power: +48V (+3V / -2V)
Input Sensitivity: -60 to +0dBu
Line Inputs (Combi Sockets): -20dB Pad (Fixed)
Analogue Gain: 0dB to +60dB, 1dB steps
Maximum Input Level: +17dBu (XLR), +30dBu (TRS)
Input Impedance: >1.5kΩ (XLR), >10kΩ (TRS)
THD+N, Unity gain 0dB: 0.002% -92dBu (20Hz-20kHz, USB soundcard, @0dBu 1kHz)
THD+N, Mid gain +30dB: 0.004% -88dBu (20Hz-20kHz, USB soundcard, @-30dBu 1kHz)
Stereo Line Input
Stereo Line Input Connection: Balanced, 1/4" TRS Jack, Normalled (Left/Mono)
Input Sensitivity Nominal: +4dBu
Trim: +/-24dB
Maximum Input Level: +21dBu
Input Impedance: >10kΩ
Main LR Outputs: Balanced, XLR
Outputs: 1-6 Balanced, 1/4" TRS Jack
Output Impedance: <75Ω
Nominal Output: +4dBu = 0dB meter reading
Maximum Output Level: +22dBu
Residual Output Noise: -88dBu (muted, 20Hz-20kHz)
System: Measured balanced XLR in to XLR out, 0dB gain, 0dBu input
Dynamic Range: 110 dB
Frequency Response: +0/-0.5dB 20Hz to 20kHz
Headroom: +18dB
Internal operating Level: 0dBu
THD+N, Mic routed to Main L/R Out: +10dBu input, 0dB system gain, 0.003%, -92dB (Relative, 20-20kHz)
dBFS Alignment: +18dBu = 0dBFS (+22dBu at XLR output)
Meter Calibration: 0dB meter = -18dBFS (+4dBu at XLR out)
Sampling Rate: 96kHz
Bit Depth: Custom bit depth, up to 96-bit
Latency: <0.7mS, Local Mic Input to Main L/R, with all processing in or out
Operating Temperature Range: 0° C to 40° C (32° F to 104° F)
Power: 12V DC, 5A (100-240V AC, 50/60Hz input PSU supplied), 35W max
USB-A
Stereo Record: 48/96 kHz, 24-bit WAV format. Patchable from Outputs, ST in, or FX Units
Stereo Playback: 44.1/48/96 kHz, 16/24 bit, Mono/Stereo WAV files
USB-B: USB 2.0, Core Audio compliant, ASIO/WDM for Windows, 48/96 kHz, 24-bit
Send / Return: 16 channels / 16 channels
SD Card: SDHC, 32 GB, UHS-I, Class 10 for maximum channels, 48/96 kHz, 24-bit
Multitrack Record: 16 channels @ 96kHz or 48kHz
Multitrack Playback: 16 channels @ 96kHz or 48kHz
Bluetooth: 4.1 (high quality stereo playback)
Dimensions (WxDxH): 91 x 242 x 89 mm
Weight: 2.4 kg
