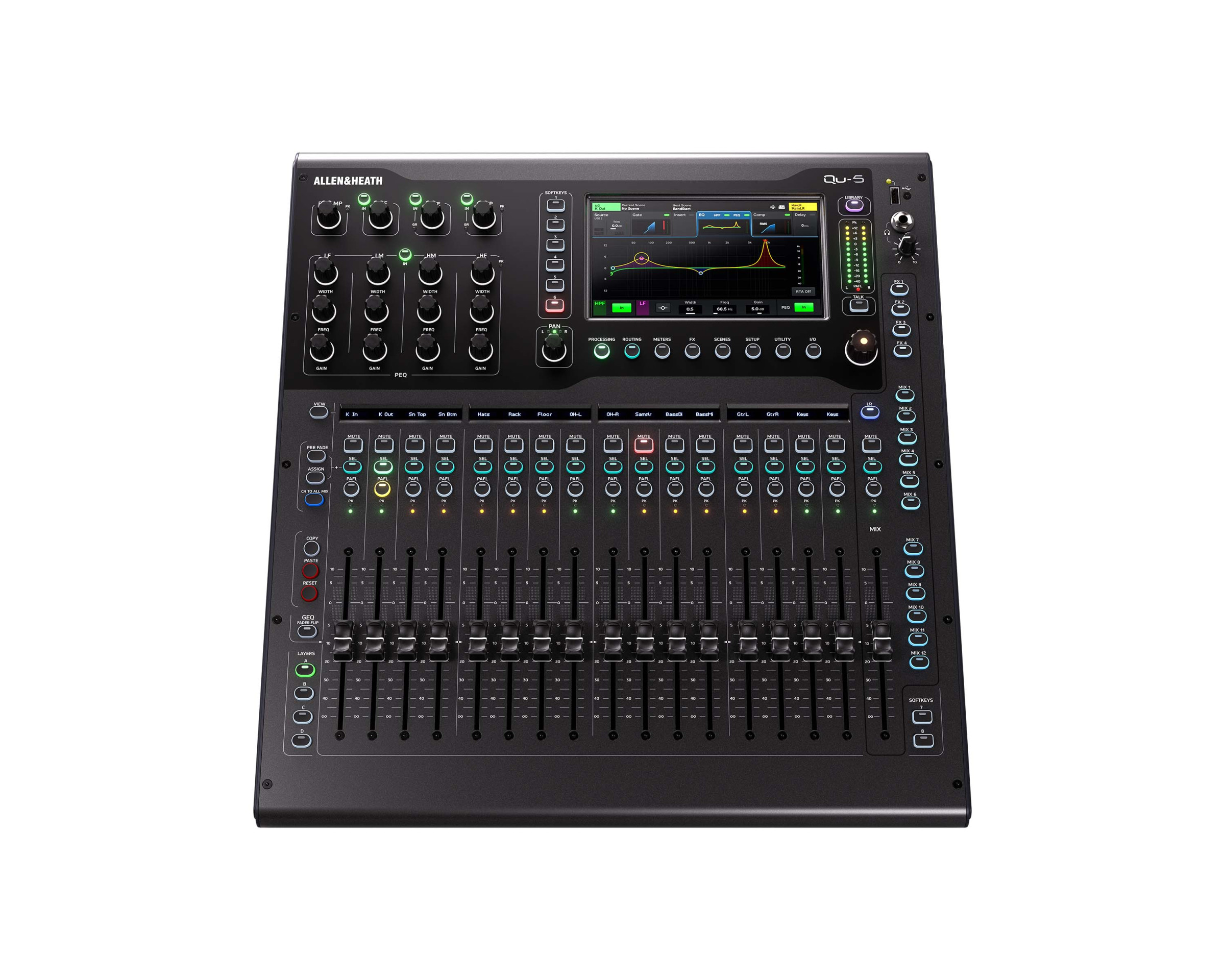

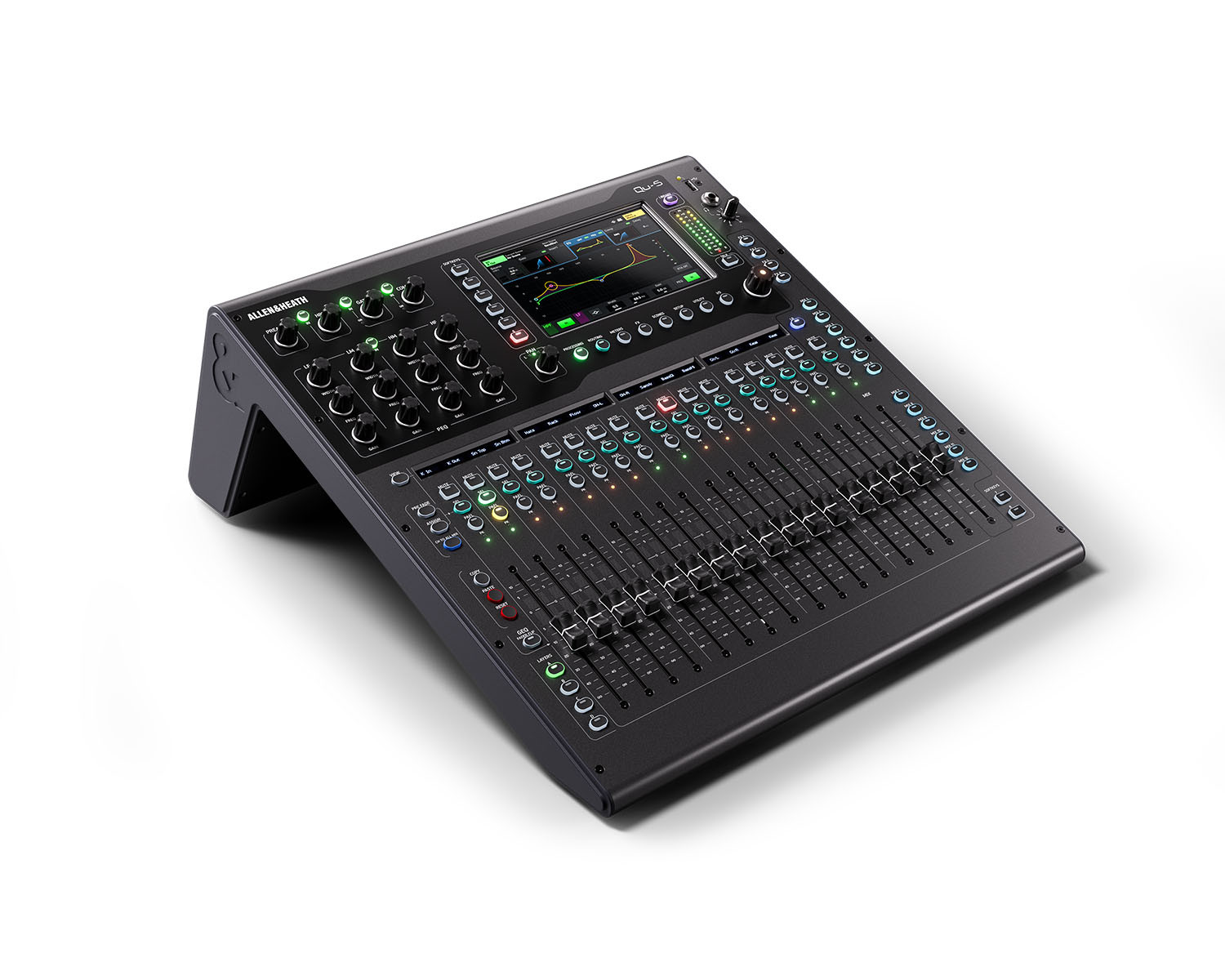

Allen & Heath QU-5 Digital Mixer
£1799.95
Qu-5 16IN / 12OUT 96kHz Rackmountable Digital Mixer exc Rack Kit
Qu-5 takes the ever-popular Qu-16 form factor and adds Allen & Heath’s powerful XCVI processing, new FX engines and Everything I/O connectivity. There’s also a larger capacitive touchscreen, channel strip displays, customisable layers and extra SoftKeys.
Both the Qu-5 and Qu-5D are rack-mountable, 32 channel, 96kHz digital audio mixers, combining high performance audio processing and professional features with ease of use and hands-on control.
Main Features
17 100mm Motorised Faders
16 XLR/Jack ‘Combi’ Mic/Line Input Sockets
12 XLR Output Sockets
96kHz XCVI Core
19” Rack Mountable (optional kit available)
Rack Mount Kit not Included
Processing & FX
96kHz XCVI Core
6 Multi-FX Engines with dedicated Stereo Returns
DEEP Processing Ready
Mix Architecture
38x Inputs to Mix (32x Mono/Linkable, 3x Stereo)
12 Mixes (6 Mono/Linkable Aux/Group, 6 Stereo Aux/Group)
4 Mono/Linkable Matrix
Stereo Main LR Output

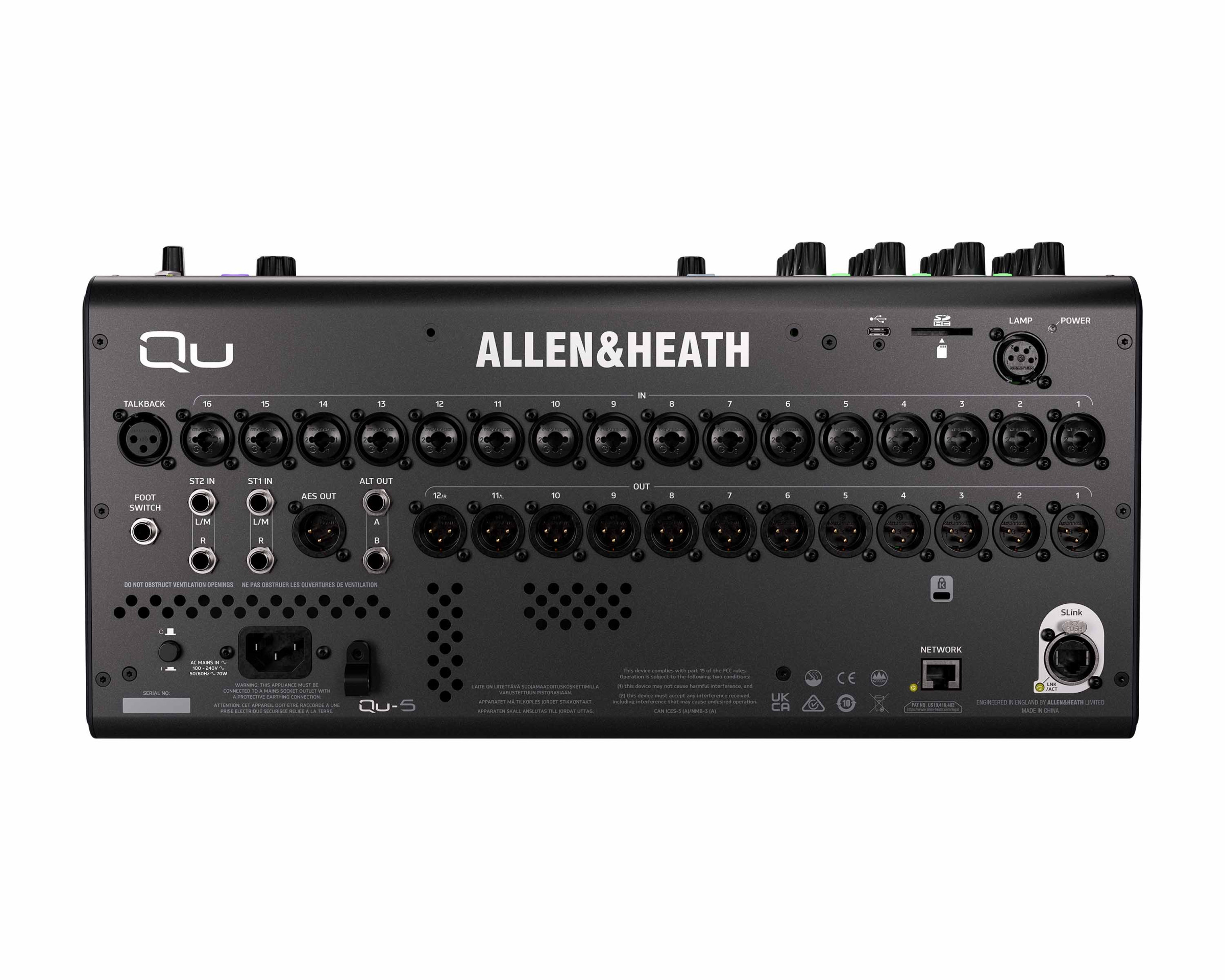

I/O
16 XLR/Jack ‘Combi’ Mic/Line Input Sockets
2 Stereo Line Input Sockets (each 2x TRS)
12 XLR Output Sockets
1 XLR Talkback Socket
2 TRS Output Sockets
1 AES3 Stereo Digital Output Socket
128×128 Intelligent SLink Port for Everything I/O expansion and system connections
Stereo Headphone Output
Control
7” Capacitive Touchscreen
17 100mm Motorised Faders
4 Channel Strip Layers
Remote control via free apps – Windows/MacOS/iOS/Android
8 SoftKeys
Configurable single/dual Footswitch Connection
Recording & Playback
USB-A For stereo audio record/playback and data transfer
USB-C Audio interface for multichannel record/playback (32×32)
SD Card Slot for multichannel audio recording or playback (16×16@96kHz, 32×32@48kHz)
Misc
19” Rack Mountable (optional kit available) (Qu-5 & Qu-5D only)
12V Lamp Socket
Configurable Chromatic Channel Meter LED’s
