CatCore SMD Dual Stage Box
£209.95
Rugged twin stage box including eight XLR-sockets and two Ethercon/RJ45 sockets for input and linked output XLRs wired parallel per channel.
Powder coated aluminium housing with versatile mounting options for cable ties, steel wire, Velcro and screws. Additional M10 thread on the bottom für fixing spigot or bolt.
Universal send/return box for audio or DMX, or combined 3/5-pin DMX breakout.
Pinout according to Standard AES72 / 3E.

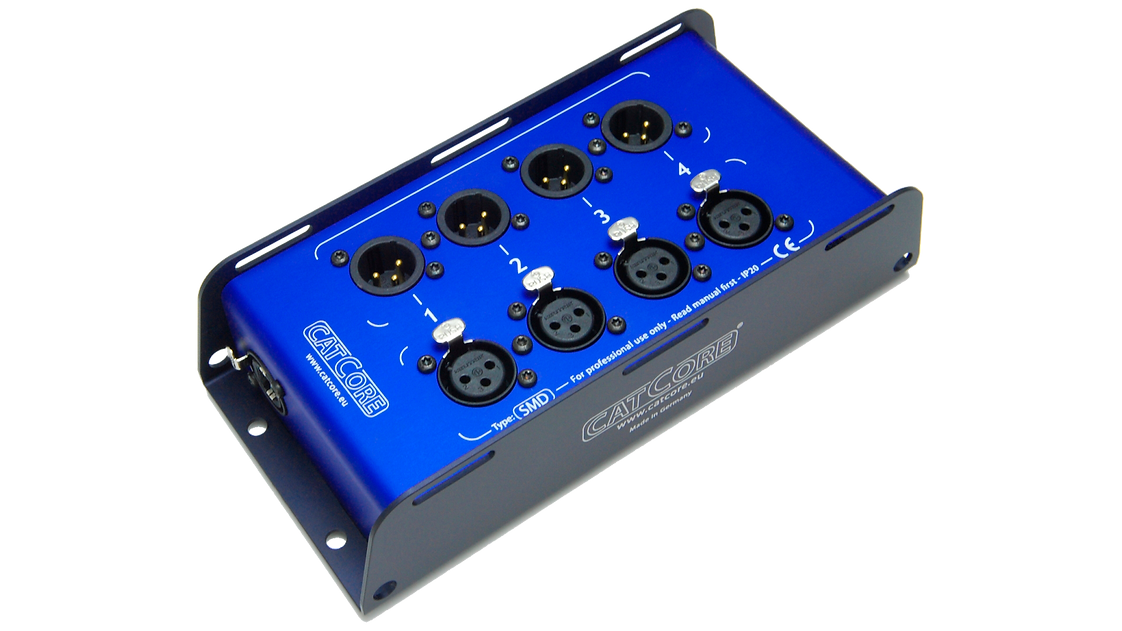

SMD-3M3F | In/out Ethercon, 4x XLR 3-pin male, 4x XLR 3-pin female |
|---|

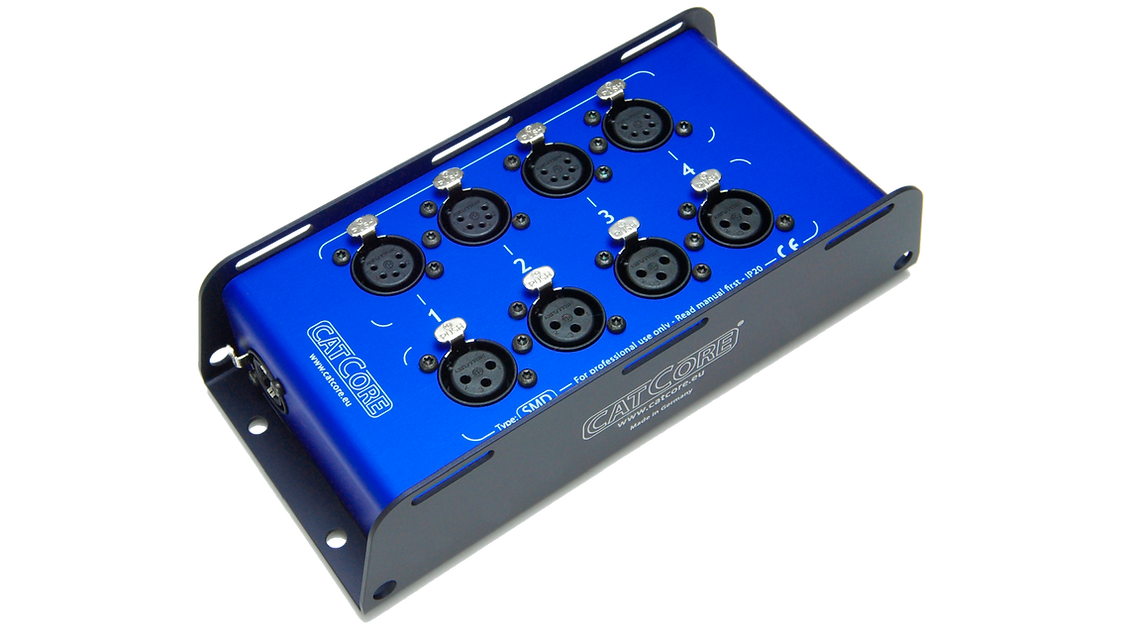

SMD-3F5F | In/out Ethercon, 4x XLR 3-pin female, 4x XLR 5-pin female |
|---|

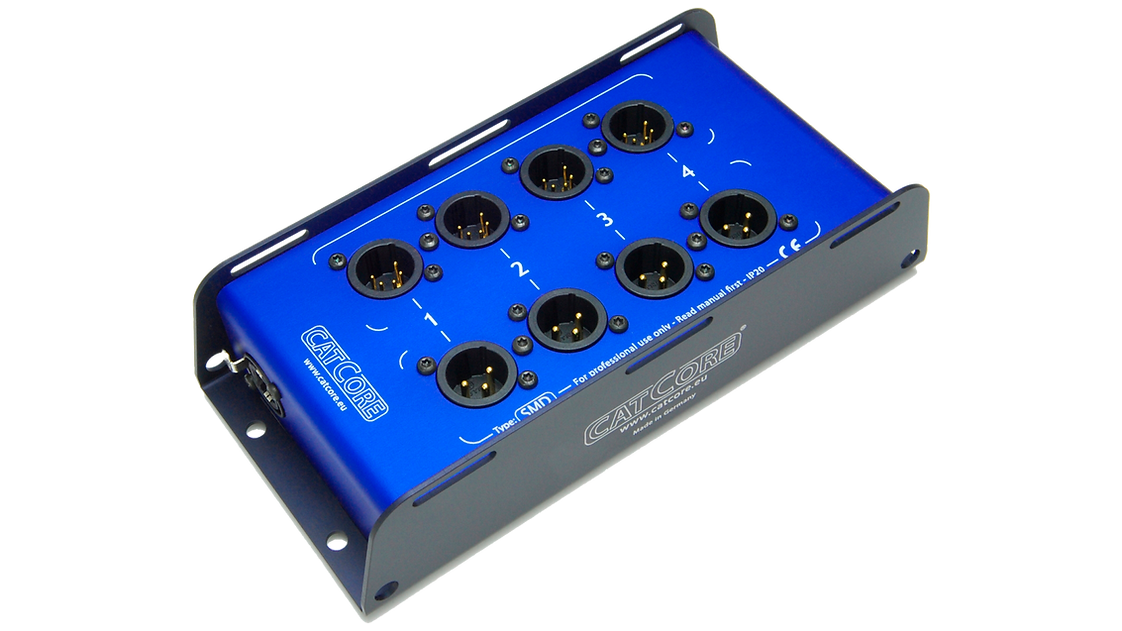

SMD-3M5M | In/out Ethercon, 4x XLR 3-pin male, 4x XLR 5-pin male |
|---|

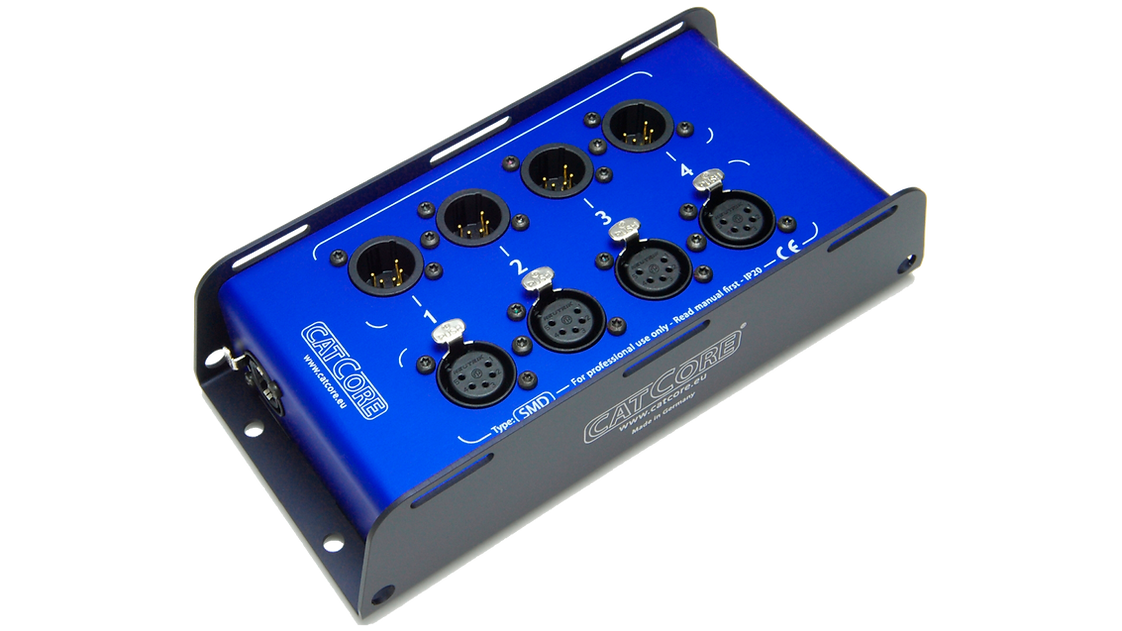

SMD-5M5F | In/out Ethercon, 4x XLR 5-pin male, 4x XLR 5-pin female |
|---|
