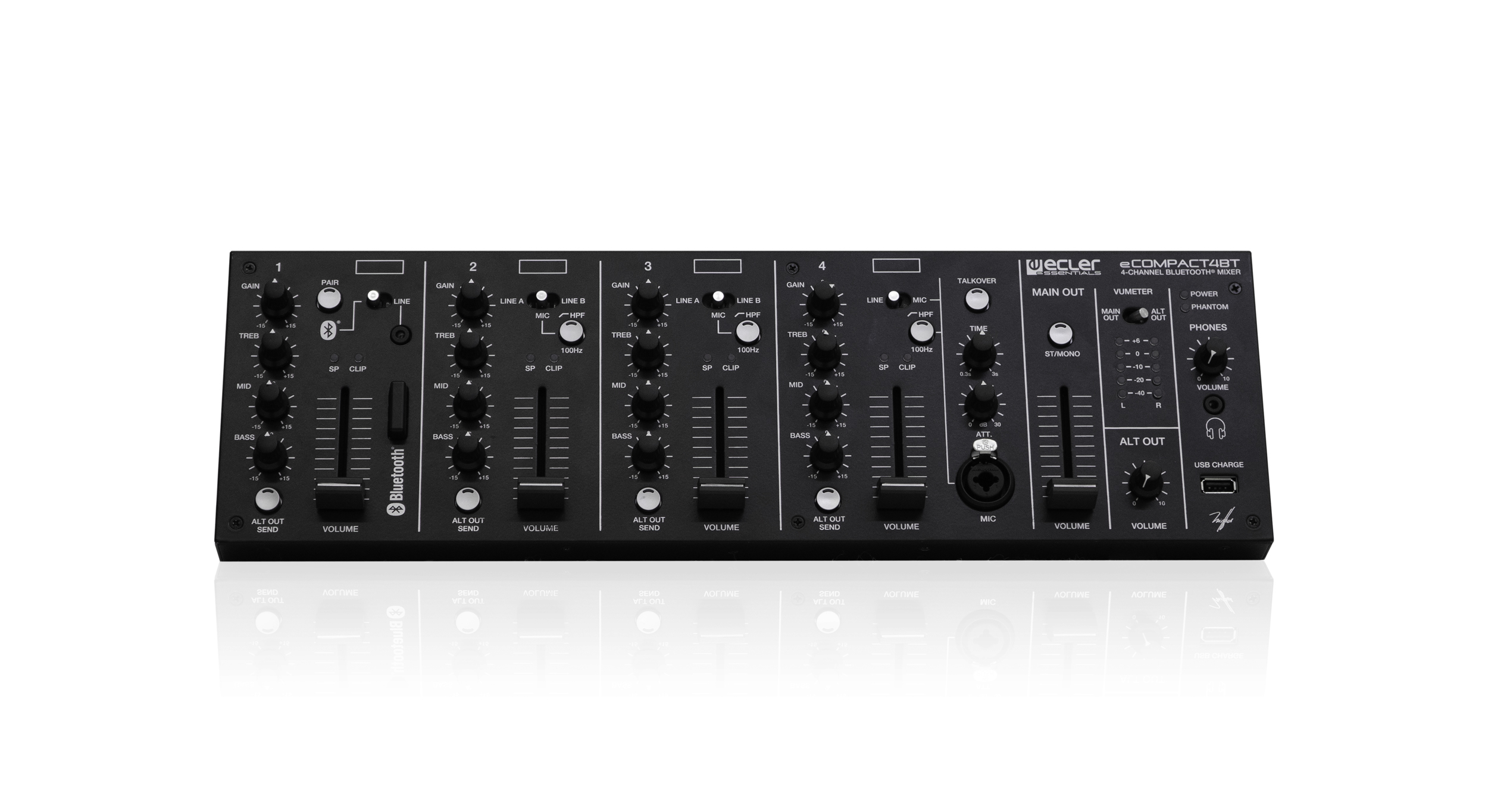

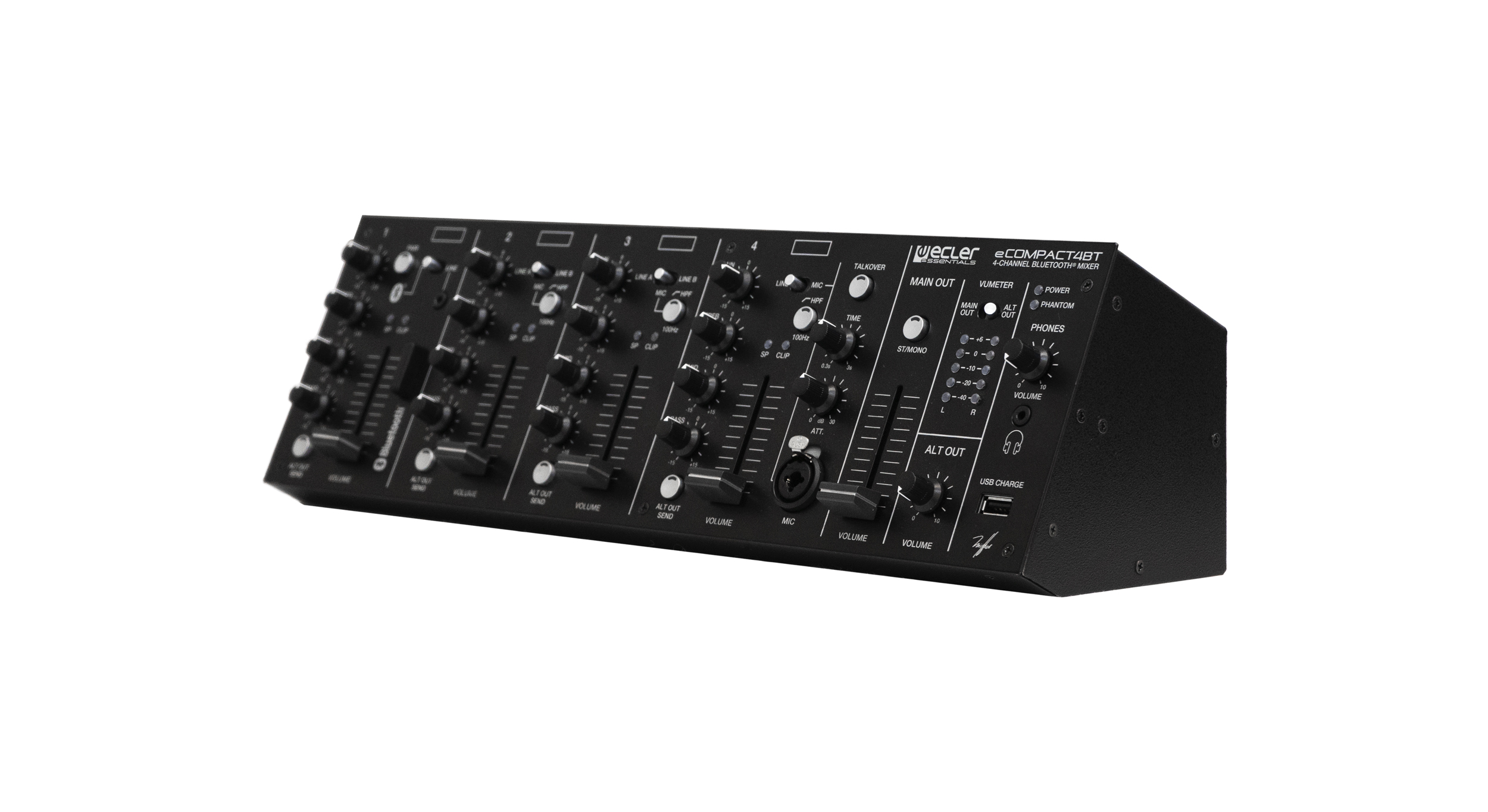

Ecler eCompact 4BT Rackmount Mixer

eCOMPACT4BT is a desktop and 19" rackmount 4-channel mixer with Bluetooth® for professional installation. Simple to operate, suitable for both experienced and novice users. Features 4 microphone inputs, 6 stereo line inputs, USB charging port, Bluetooth® wireless connection and a mini-jack input for external devices. All microphone inputs have a switchable high-pass filter. 3-band tone control and ALT Send (sub-mix channel) on all channels.

FEATURES

• 4-channel analogue mixer, one channel with adjustable Talk over

• 19" rack installation or desktop

• 4 microphone inputs, one with combo connector (front panel)

• 48 V phantom power for microphone inputs (rear panel selector)

• 6 RCA stereo line inputs, and one stereo mini-jack line input on front panel

• Class 1 Bluetooth® wireless connection (up to 25 m range under ideal conditions)

• Source selector on each channel

• Selectable high-pass filter for MIC inputs (fc = 100 Hz)

• 3-band tone control (treble, midrange and bass)

• Input signal presence and overload indicators

• 45 mm faders

• ALT OUT send per channel. Sub-mix available

• USB port for charging mobile devices

• Balanced main output (MAIN OUT), XLR connector

• Stereo/mono switch for main output

• Signal indicators (LED) with measured output signal selector (MAIN OUT or ALT OUT)

• Unbalanced alternative or sub-mix output (ALT OUT), RCA connector

• Sub-bass or auxiliary output (SUB OUT), XLR connector. Mono sum of the main output signal

• Low-pass filter available on SUB OUT (fc = 150 Hz)

• Front panel headphone output, mini-jack

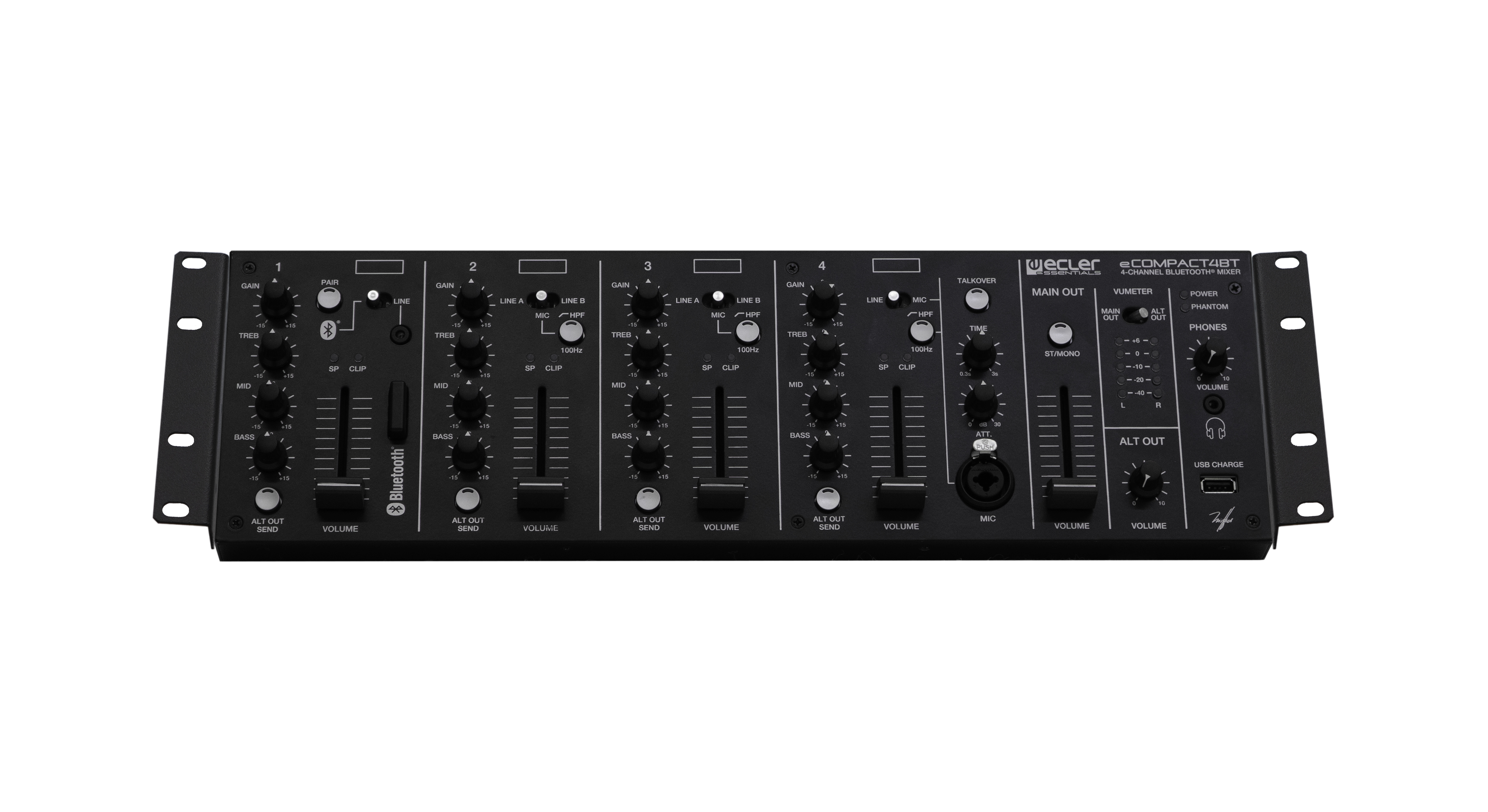

• 3URMKIT included (rack-mount accessory)
