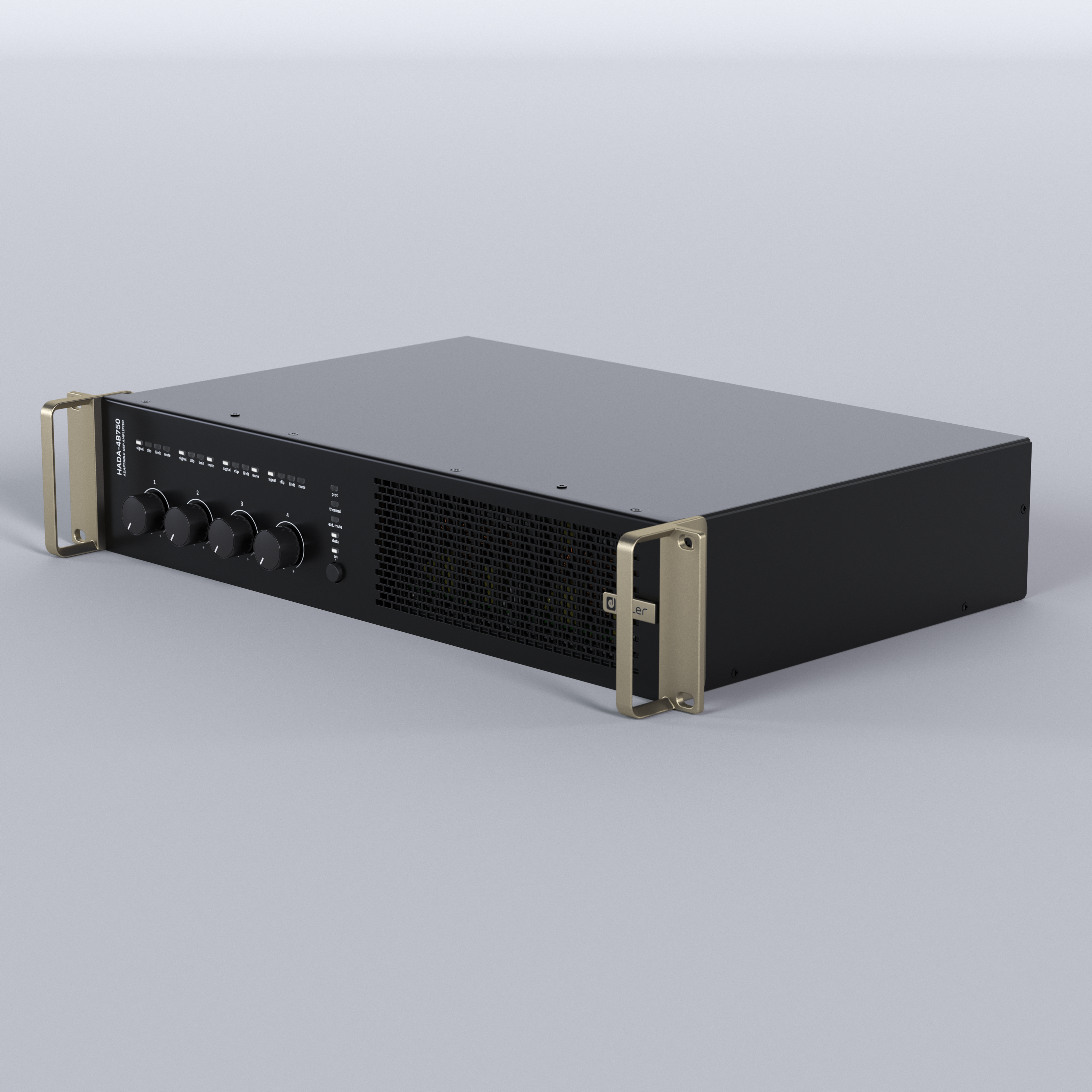

Ecler HADA-4B750 Commercial Hi/LoZ Amplifier
£1797.95
HADA-4B750 is a 4x750W digital amplifier that supports low and high impedance loads. The internal DSP, through the DSP Manager software, allows tailoring the input and output signal through parametric EQs, multi-band compressors, limiters, and delays and each configuration can be saved as a preset. In addition to the software option, input levels can be controlled via the front panel potentiometers, via remote controls using the rear panel GPI, or via a TCP/IP from third party control systems. All HADA series amplifiers include efficient thermal protection, DC protection, over current protection, and HF protection for total reliability in any kind of installation.
Features
4 x 750W outputs @ 4ohms.
2 x 1500W @ HiZ (100/70V) in bridge mode.
4 analogue inputs on Euroblock connectors.
4 GPI for remote volume control.
1 External Mute.
Internal matrix mixer and signal processing.
HADA DSP Manager software for device configuration and control.
Third party control via TCP/IP
Number of output channels: 4
Output connection type
2-pin Euroblock
Output configuration
Lo-Z/Hi-Z, 70V/100V (Bridge mode), 4Ω/8Ω
Output mode selection per channel/couple by software
(Settings by HADA DSP Manager)
Number of input channels
4 analogue input channels
Input connection type
Analogue: IN1-4: 3-pin Euroblock, balanced, pitch 3,5 mm
Input configuration
Digital matrix 4 in x 4 amp. out
(Settings by HADA DSP Manager)
Max output power @ 8Ω
400 W (All channels driven @ 1%THD)
Max output power @ 4Ω
750 W (All channels driven @ 1%THD)
Max output power @ 2.7Ω
600 W (All channels driven @ 1%THD)
Max output power @ 2Ω
450 W (All channels driven @ 1%THD)
Max output power @ 4Ω bridge mode
1400 W (All channels driven @ 1%THD)
Max output power @ 8Ω bridge mode
1250 W (All channels driven @ 1%THD)
Max output power @ 100V
1500 W (Bridge mode) (All channels driven @ 1%THD)
Max output power @ 70V
1500 W (Bridge mode) (All channels driven @ 1%THD)
Dimensions
482.6 x 88 x 281.5mm / 19 x 3.46 x 11.08 in. (WxHxD)
Weight
6.0 Kg / 13.22 lb
Shipping dimensions
495 x 125 x 560 mm / 19.48 x 4.92 x 22.05 in. (WxHxD)
Shipping weight
8.1 kg / 17.85 lb
