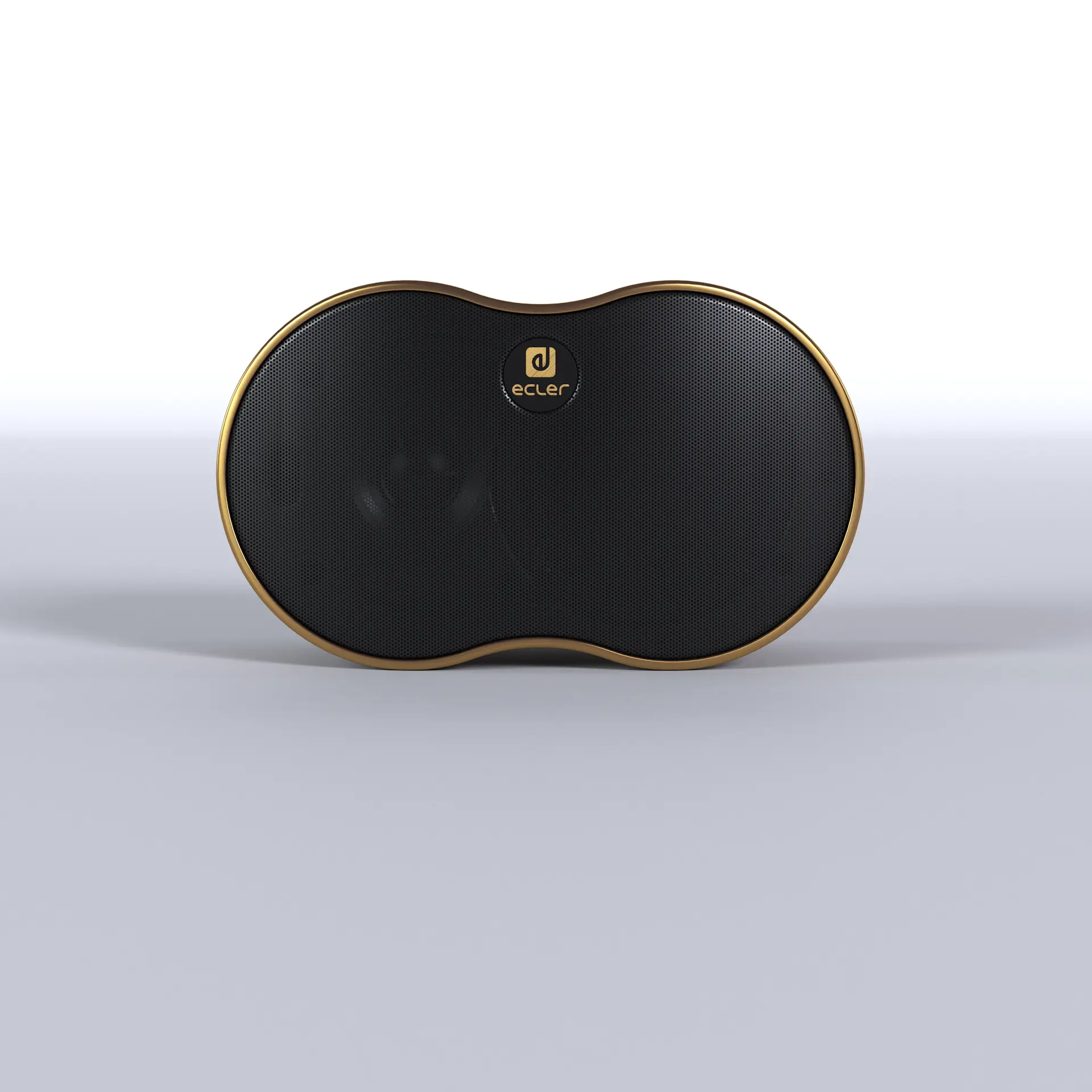

Ecler NIMBO-14 Loudspeaker
£359.95
NIMBO-14 is a premium performance 2-way passive loudspeaker with 40W RMS power, in a compact size with extended low frequency response. Suitable for outdoor applications, with a cloud-inspired design, result of Ecler's engineering skills and the collaboration of architects and interior designers. Including 1 x 4" woofer and a 1" silk tweeter located in the acoustic centre, acting as a single point source to disperse the sound evenly. It includes a wall-mount bracket (inox), allowing tilt and pan adjustment using a single screw.
FEATURES
2-way passive loudspeaker for surface mounting.
1x 4" woofers with 4-layer voice coil improves power handling and low frequency response.
1" silk tweeter with neodymium magnet and ferrofluid.
8Ω nominal impedance.
Glass-fibre reinforced ABS non resonant compact enclosure.
Wide dispersion pattern.
HANDY wall-mount (inox) versatile pan and tilt bracket included. Quick and easy to install, including jumps and markings for repeating speaker orientation.
Weather-protected with an IP-44 rating.

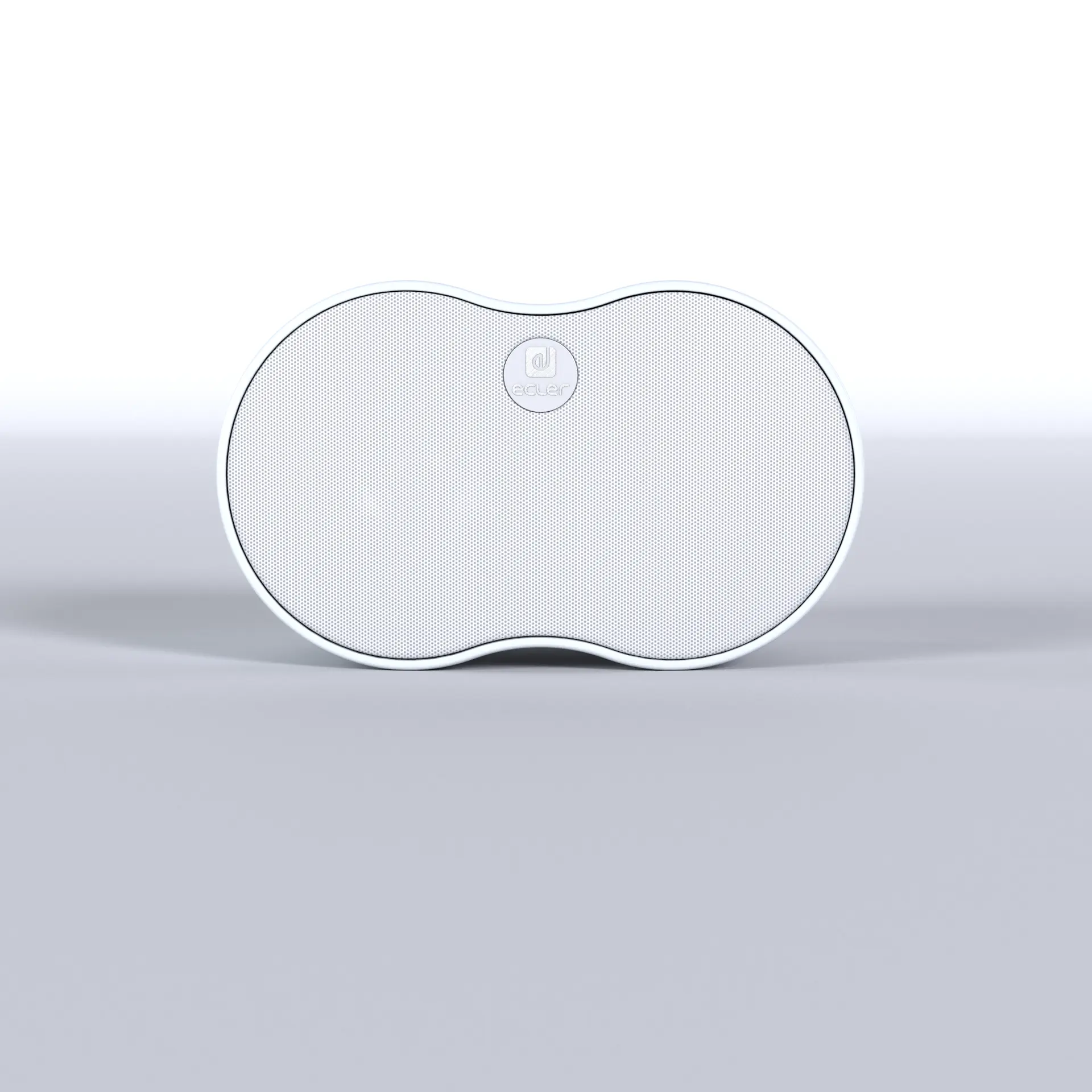

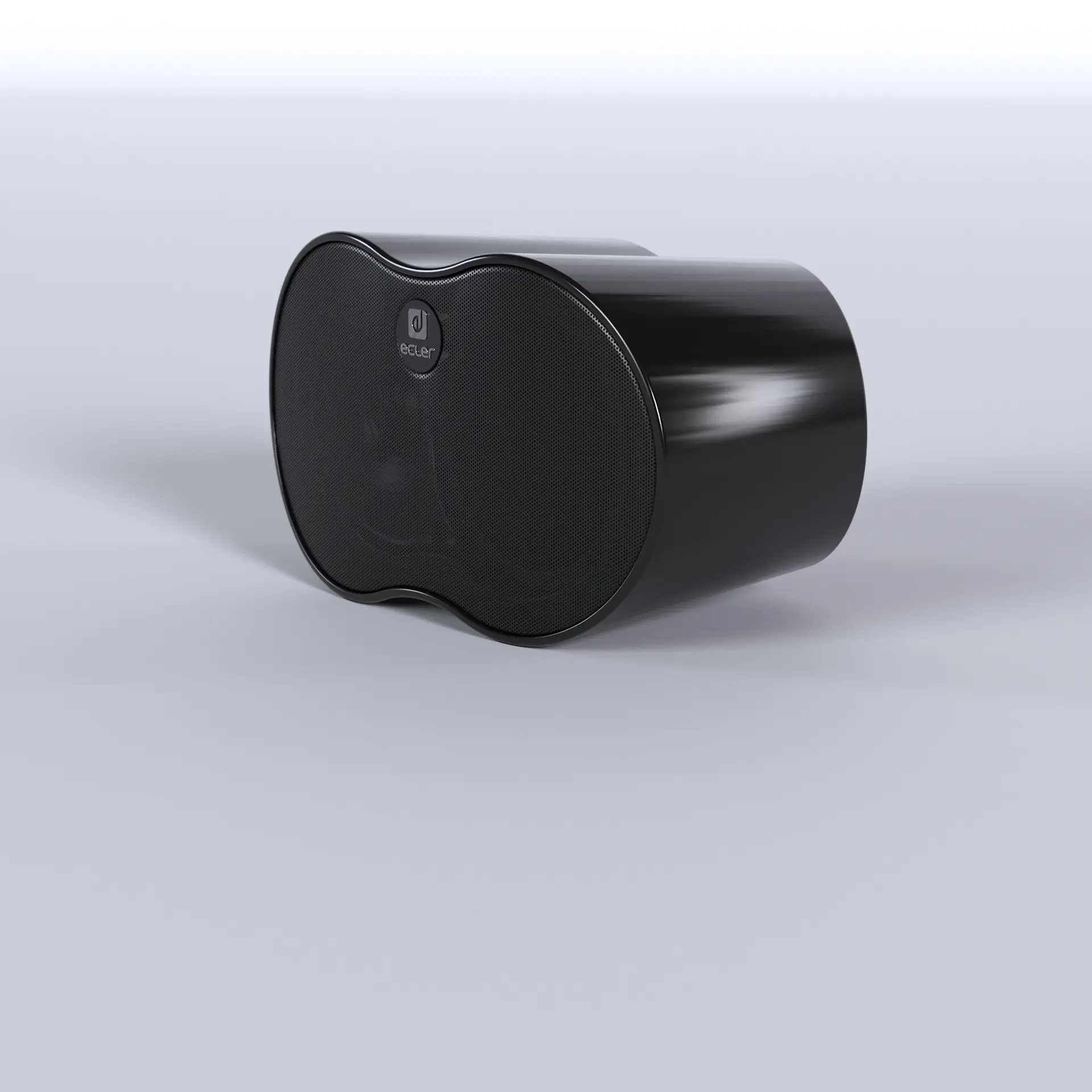

Available in white (RAL9003), black (RAL9005), gold colour (RAL1036, approx.) and titanium colour (RAL9007 MATT).
RAL paint customization available. Please contact us.
Effective Freq. Range
75Hz-20kHz (-10dB)
Coverage angle / Dispersion
128° x 196° (HxV)
Power handling
40W RMS / 160 W Peak
Maximum SPL
97dB continuous / 103 dB peak
Low frequency driver
1 x 4" Woofer
High frequency driver
1" Silk Dome Tweeter
Nominal impedance
8Ω
Weight
1.7 kg / 3.75 lb
Pieces per box
1
Shipping dimensions
330 x 250 x 240 mm / 13 x 9.84 x 9.45 in.
Shipping weight
2,7 kg / 5,95 lb
