Intusonic VRE11 Wall Panel

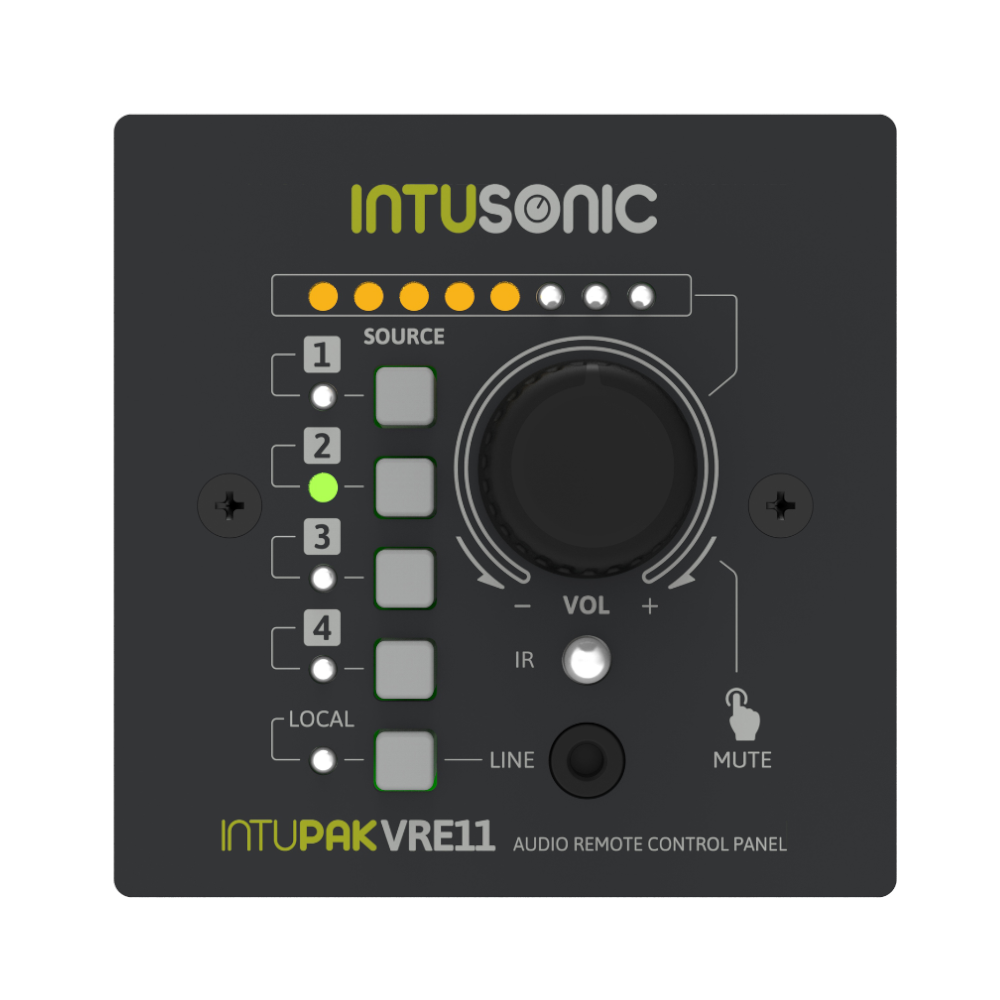

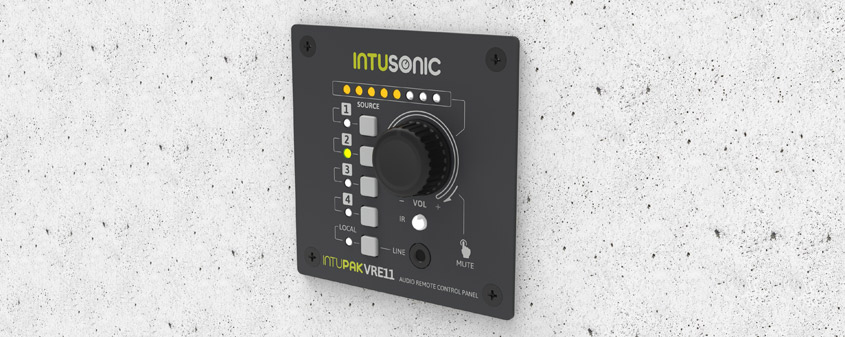

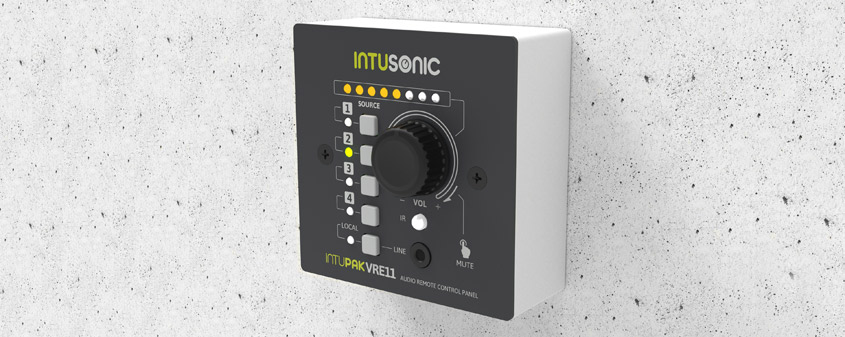

Despite its unimposingly elegant looks, the INTUPAK™ VRE11 is a powerful and versatile user frontend for Intusonic’s RS-485 enabled audio control systems. It fits standard wall box sizes with minimal depth and hence can be mounted right where its needed – in the room to be controlled. A standard CAT network cable is sufficient for connections; no additional power supply is required. Due to its daisy-chaining possibilities, more than one unit can be installed in a room, with the last operated one setting the system, and those settings being replicated on all VRE11 panels as well as the connected main unit. A local audio feed is possible as well, via the provided 3.5mm jack. For even better convenience, the VRE11 also sports an infrared remote control receiver and comes with a IRB44 remote control right out of the box. The VRE11 is compatible with the VLA42 control node and other RS-485 enabled INTUSONIC audio systems.

Replicates all main unit controls: source selector, volume control, volume indicator (8 LEDs)

• Additional local stereo 3.5mm TRS input (mono audio transmission to main system)

• Includes 2 metal panels, compatible with common EU/GB wall box sizes

• Connection to main unit via standard Cat5/Cat6 cable

• Assignable to one of 8 zones via on-board DIP-switch

• Multiple units can be daisy-chained with “last setting rules” system

• IR remote feature (IRB44 remote control included)

• No PSU required – power supply provided by main unit (max. 50m)

• Compatible with VLA42 and other Intusonic products with RS485 source/volume setting
