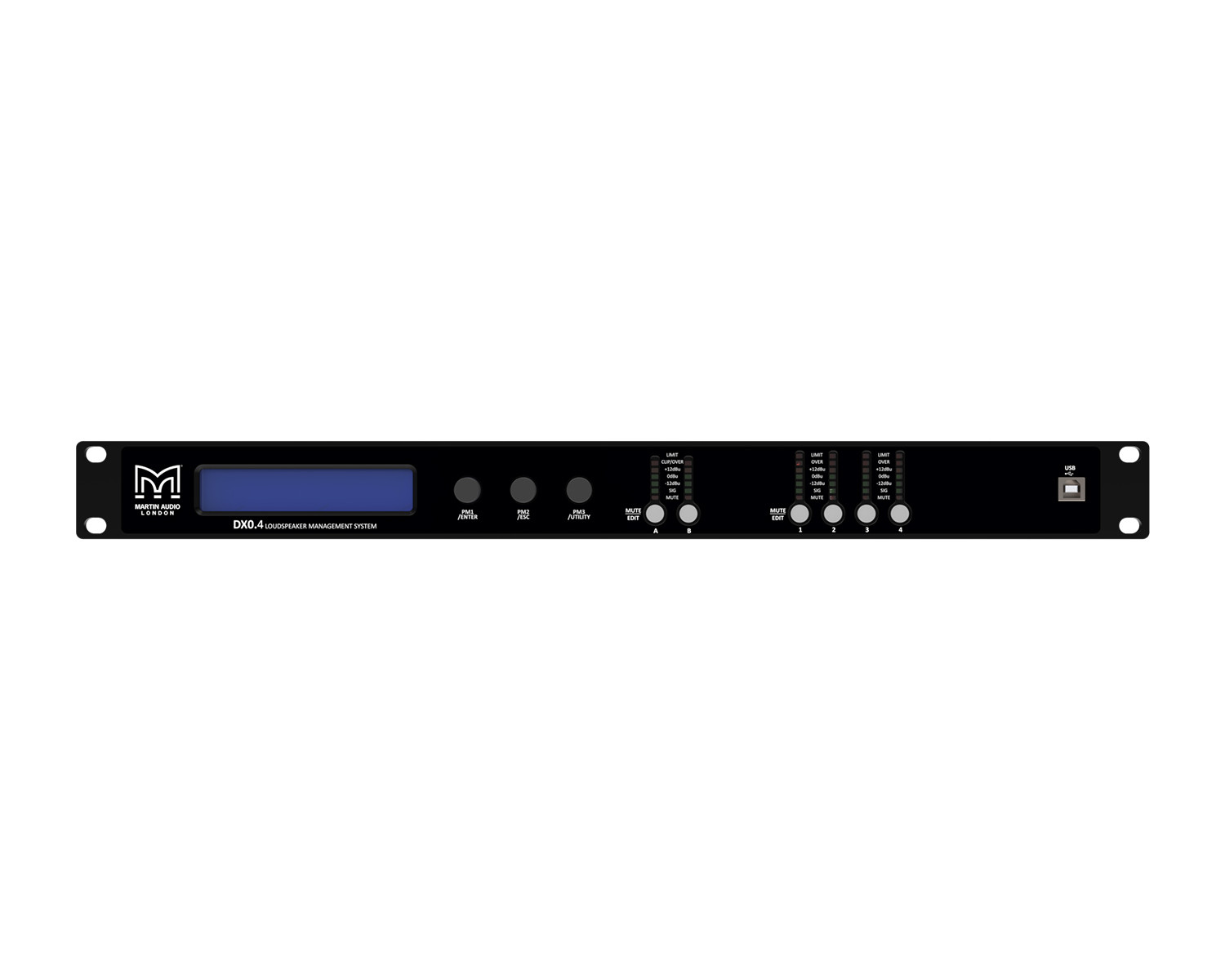

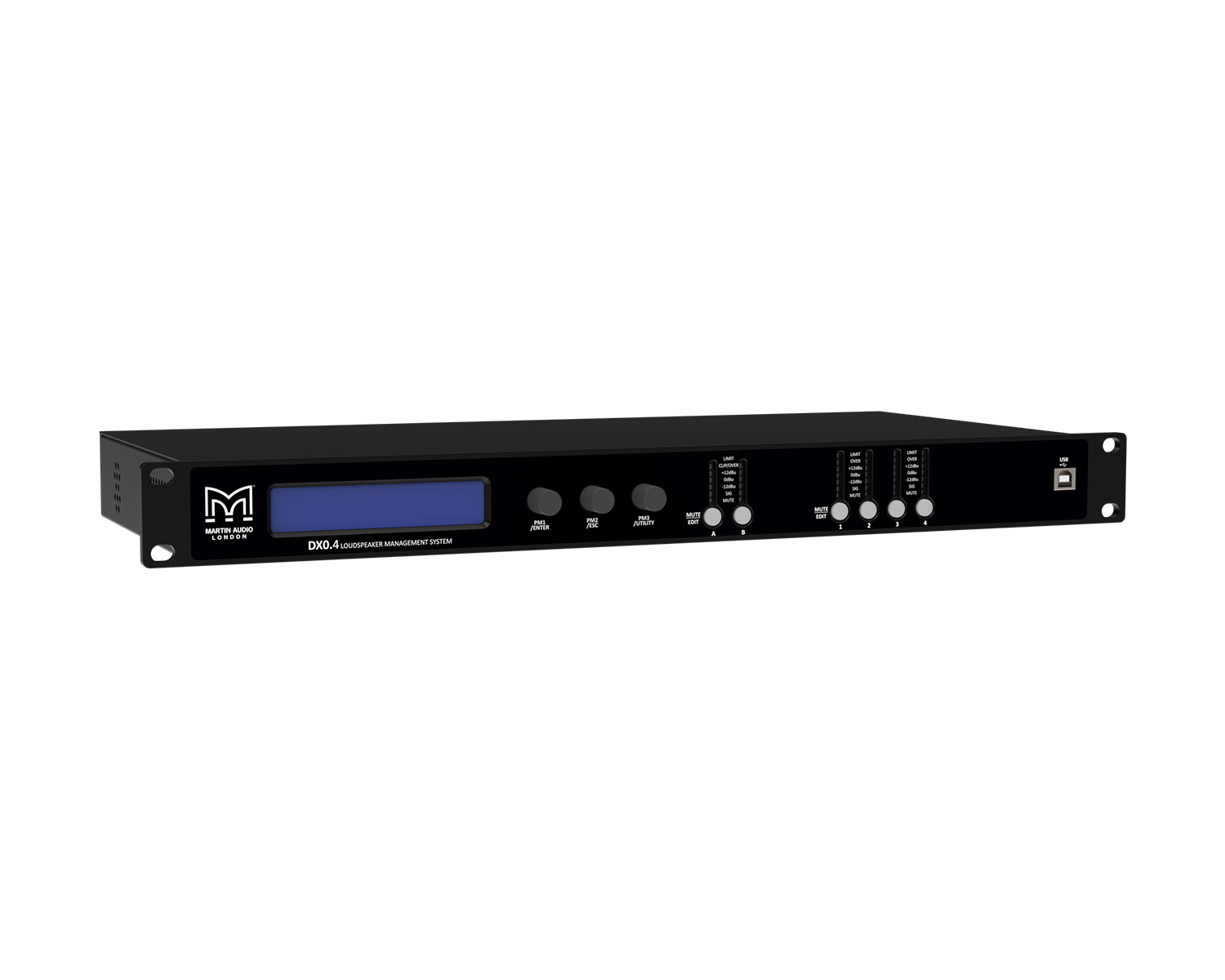

Martin Audio DX0.4 Loudspeaker Management System
£589.95
DX0.4 Networked Loudspeaker Management System 2 IN / 4 OUT
The DX0.4 is the ideal processing tool to partner the ADORN, CDD and BlacklineX ranges or indeed any system where comprehensive system control and protection is required, perhaps where there may be budget constraints.
The DX0.4 offers a substantial array of processing options. Routing is freely assignable from the 2 inputs to the 4 outputs. Input and output equalisation is available with a choice of 16 filter options. An input noise gate will help deal with noisy signal sources. Input and output delay is available to time align components in a system. Crossover filters with slopes from -6dB/octave up to -48dB/octave are available in the three most popular filter types, and a two stage limiter; program and peak, will protect your speakers from damage due to excessive power.
Input Impedance: 20k Ohm balanced
Output Imp: 100R
Max Input Level: +20dBu
Max Output Level: +18dBu
Crosstalk: <-95dB
Sample Rate: 96kHz
Signal To Noise Ration >113db (A weighted)
Noise Floor: <-94db (A weighted)
Common Mode Rejection Ratio: 60dB
Frequency Response: 20hz - 40khz +0.3dB
Input A/D Dynamic Range: 118dB
Output D/A Dynamic Range: 118dB
THD (+4dbu 1khz): <0.003%
Mains Voltage Range: 85-230VAC 50-60Hz
Nominal Power Consumption: 30w

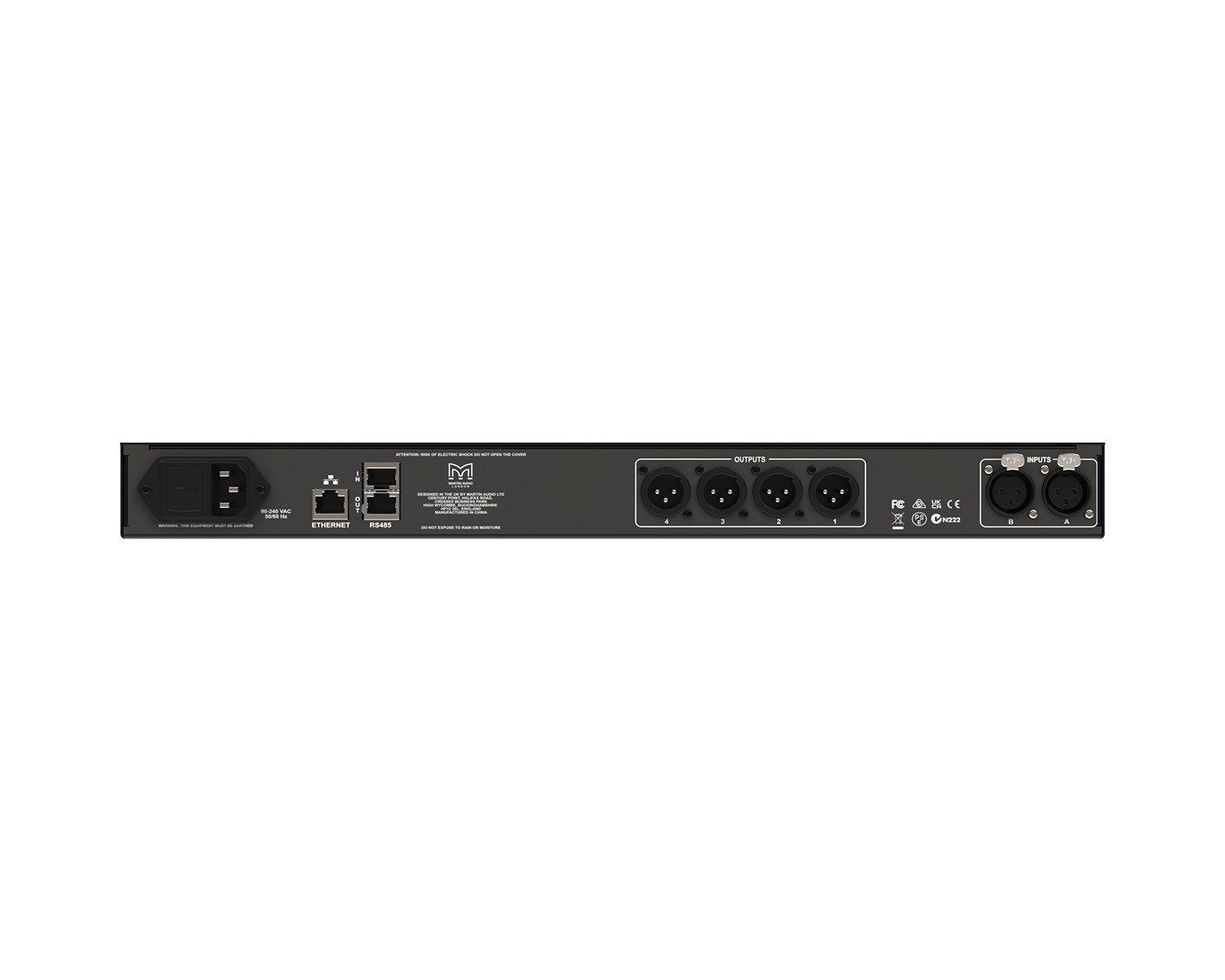

Audio Input: 2 X 3 Pin Female XLR
Audio Output: 4 X 3 Pin Male XLR
Ethernet: Shielded RJ45, Dynamic or Static IP
Rs485: 2 X RJ45
USB: 1 X USB B (Front Panel)
Mains: 3 Pin IEC
Signal Generator: White/pink noise, -30dBu to +10dBu
Gain: -18dB to +12dB, step accuracy 0.1dB
Input Equaliser:
10 band PEQ, gain range +15dB
16 x Filter types
Input Gate:
Threshold: -40 to -80dBu
Attack: 1 to 1,000ms
Release: 1 to 1,000ms
Routing:
Freely assignable 2-in, 4 out
Up to 30dB attenuation on each node
Delay:
Input: 600ms
Output: 200ms
Steps: 20us,
Units: milliseconds, metres, feet
Output Filters:
High & Low Pass, -6dB/Octave to -48dB/Octave
Slope types: Butterworth, Bessel, Linkwitz Riley
Output Equalisation:
8 band PEQ, gain +15dB
16 x filter types
FIR Filter Import
Program Limiter:
Threshold: -10 to +20dBu
Attack: 1 to 1,000ms
Release: 10 to 3,000ms
Peak Limiter:
Threshold: 0 to 12dB above Program Limiter Threshold
Release: Fast (91ms), Medium (350ms), Slow (800ms)
Height: 1U (44mm) [1.75”]
Width: 482mm [19”]
Depth: 230mm [9.1”]
Weight: 3.0kg [6.6lb]
