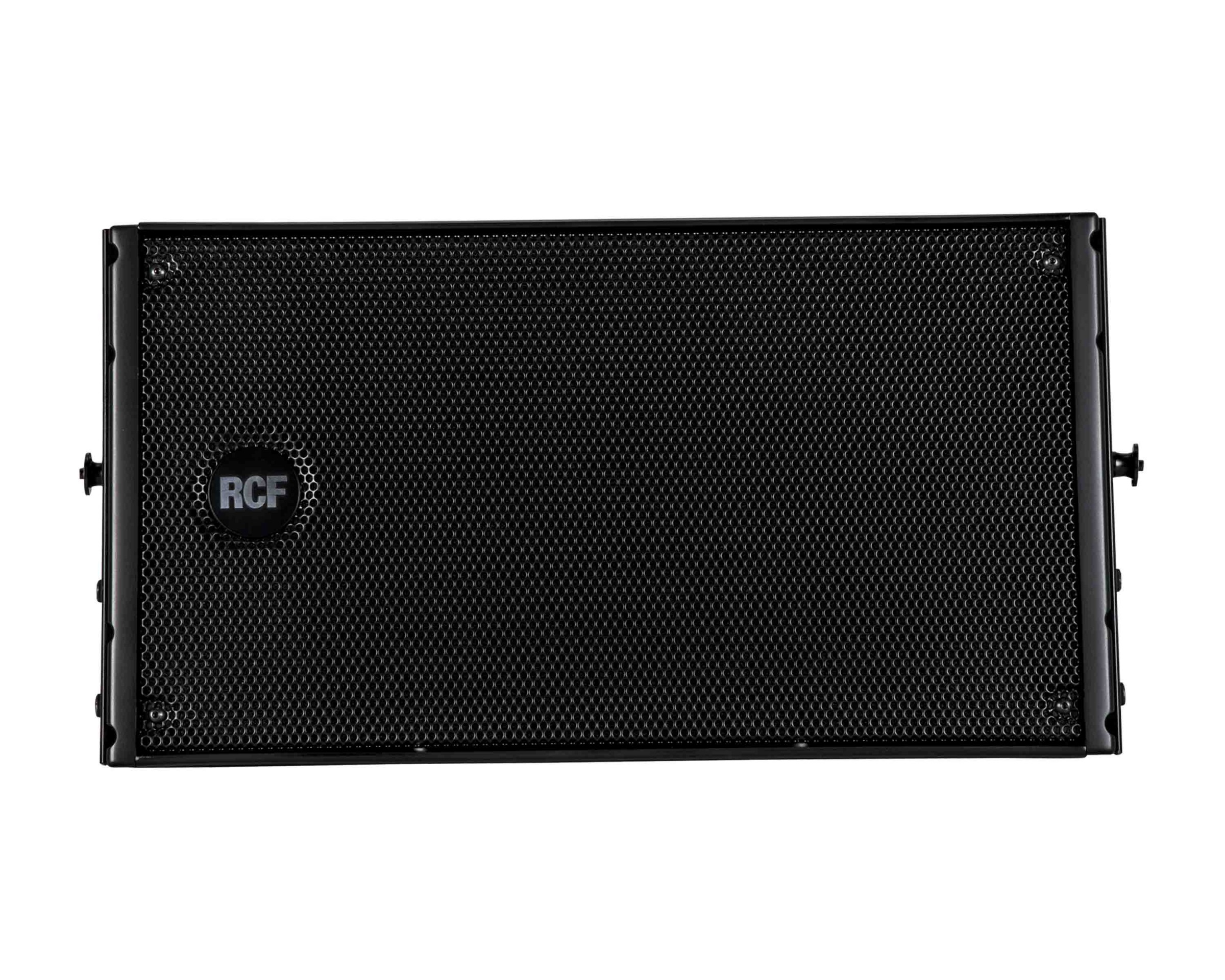

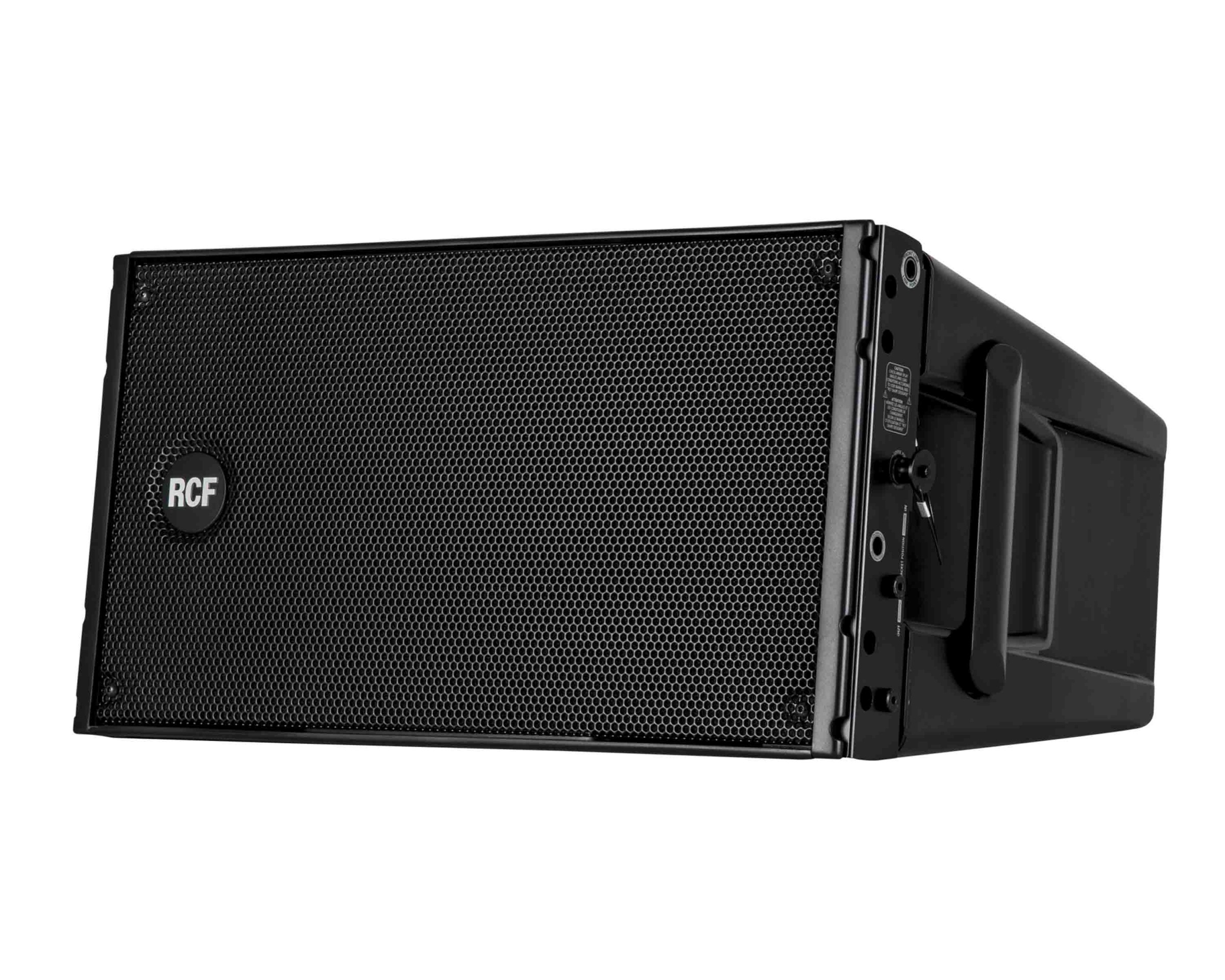

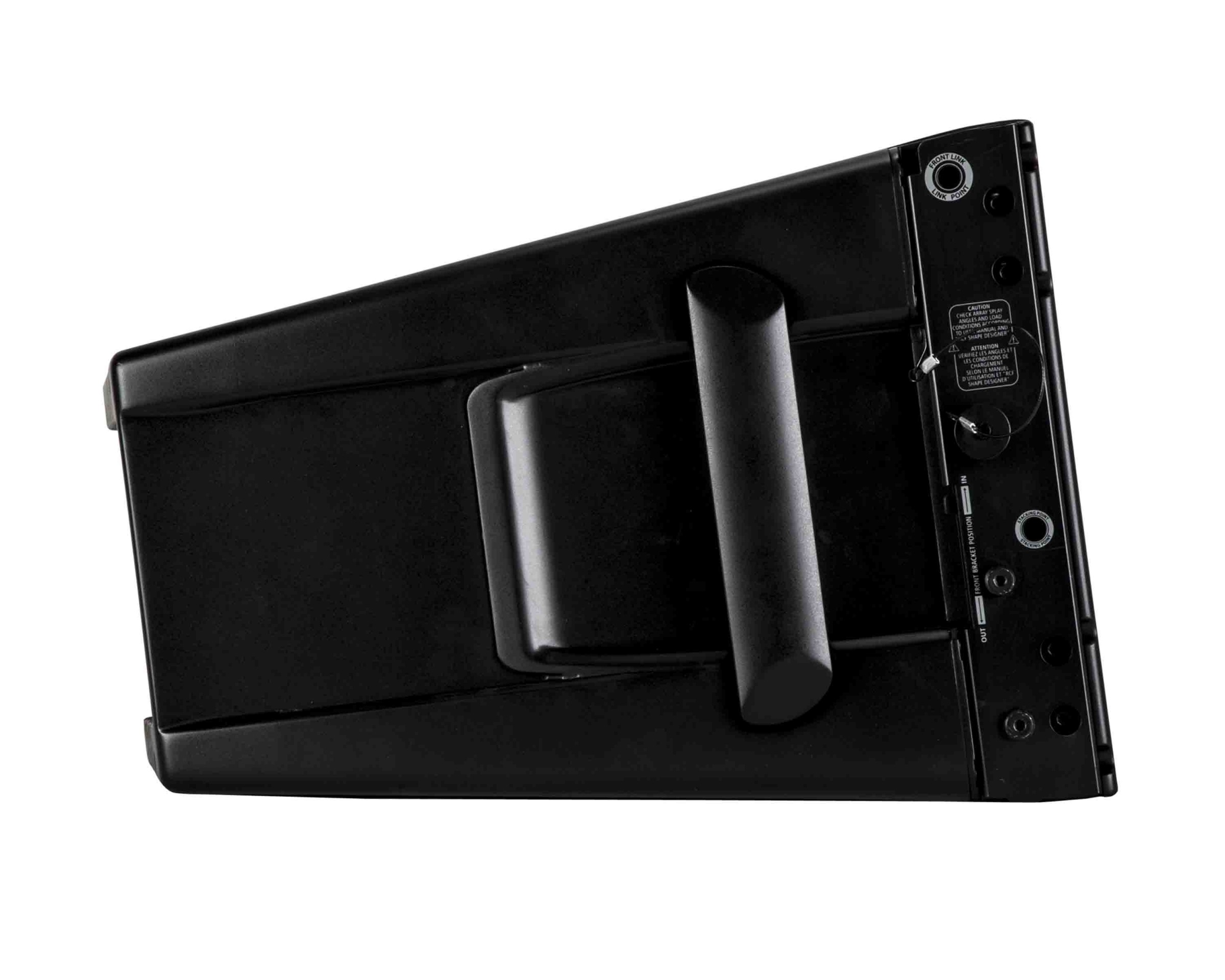

RCF HDL10A 2x8" Active Line Array Module
£1695.95
HDL10A D-Line 2-Way 2x8" Active Line Array Module 700W
The very compact size, no compromise transducers and a unique composite cabinet design make the HDL 10-A the perfect tool in many situations.
Ideal in live sound reinforcement and reliable installed situations. The HDL 10-A is the ideal choice when line array performance is needed and a fast and easy set up is a must. The system is powered from a 1400 Watt Peak Power 2 way digital amplifier, sound is processed from a powerful DSP.
Product Features
1400 Watt Peak power - 700 Watt RMS
133 dB max SPL
65 Hz 20 kHz frequency response
2 x 8" Woofers
1 x 2" Compression Driver
DSP controlled Input section with selectable pre-sets
Compression Driver: 2", 2.5" v.c.
Woofer: 2 x 8", 2.0" v.c.
Amplifier Specifications
Total power: 1400 W PEAK
High frequencies: 400 W PEAK
Low frequencies: 1000 W PEAK
Total power: 700 W RMS
High frequencies: 200 W RMS
Low frequencies: 500 W RMS
Cooling: Convection

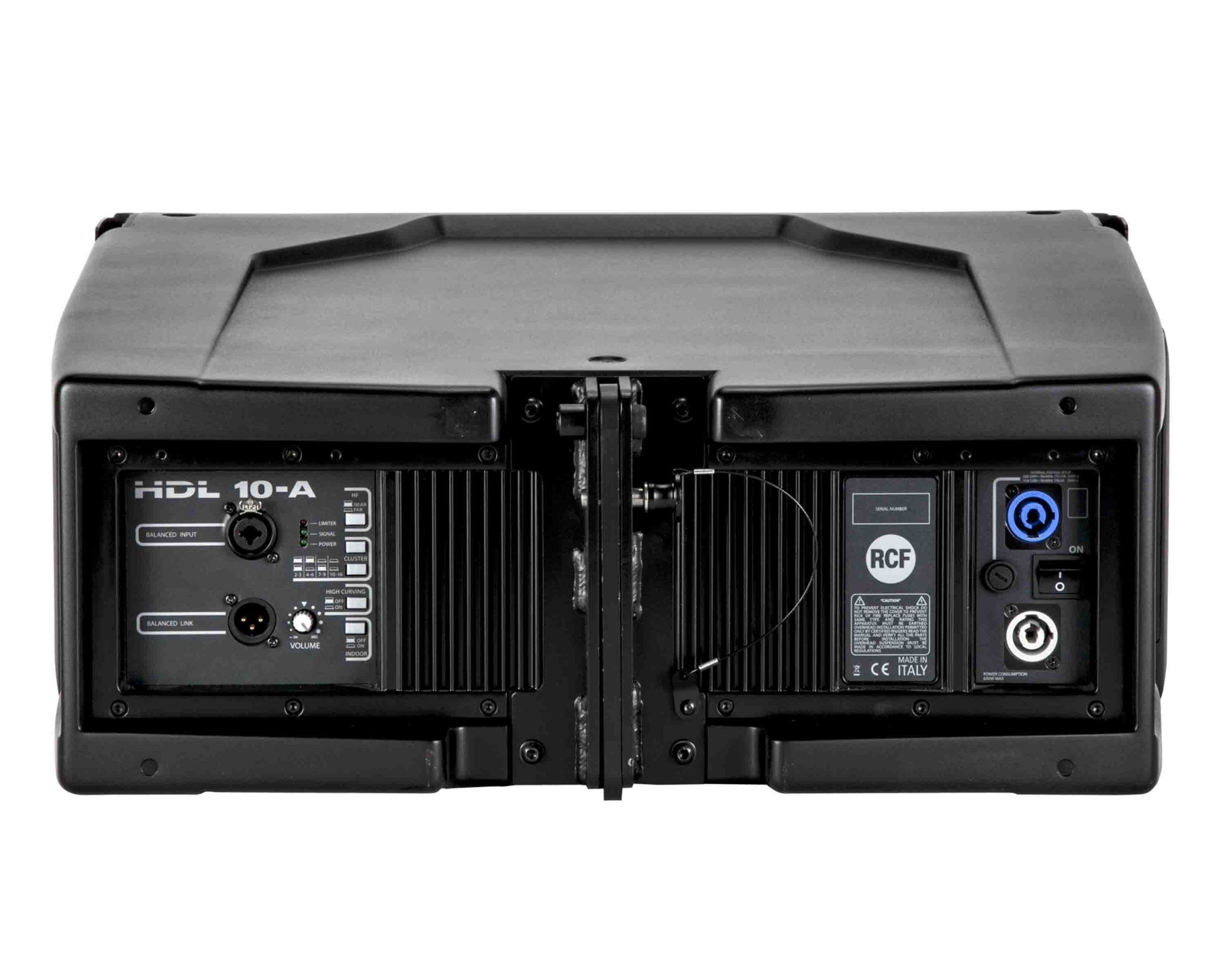

Connections: Powercon in/out
Max SPL: 133 dB
Frequency Response -3 dB: 65 Hz ÷ 20000 Hz
Horizontal coverage angle: 100°
Vertical coverage angle: 15°
Height: 294mm
Width: 569mm
Depth: 434mm
Weight: 20.4kg
