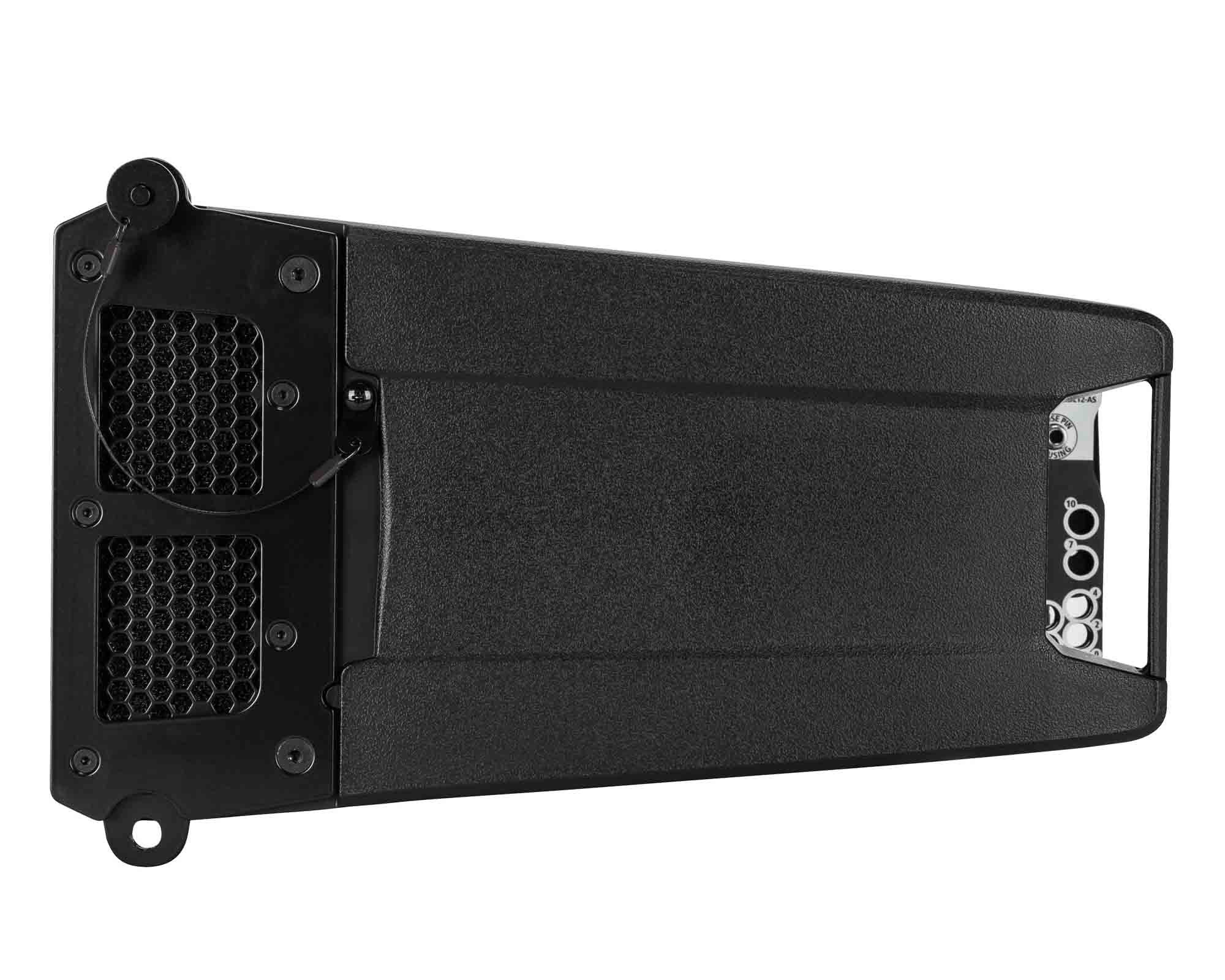

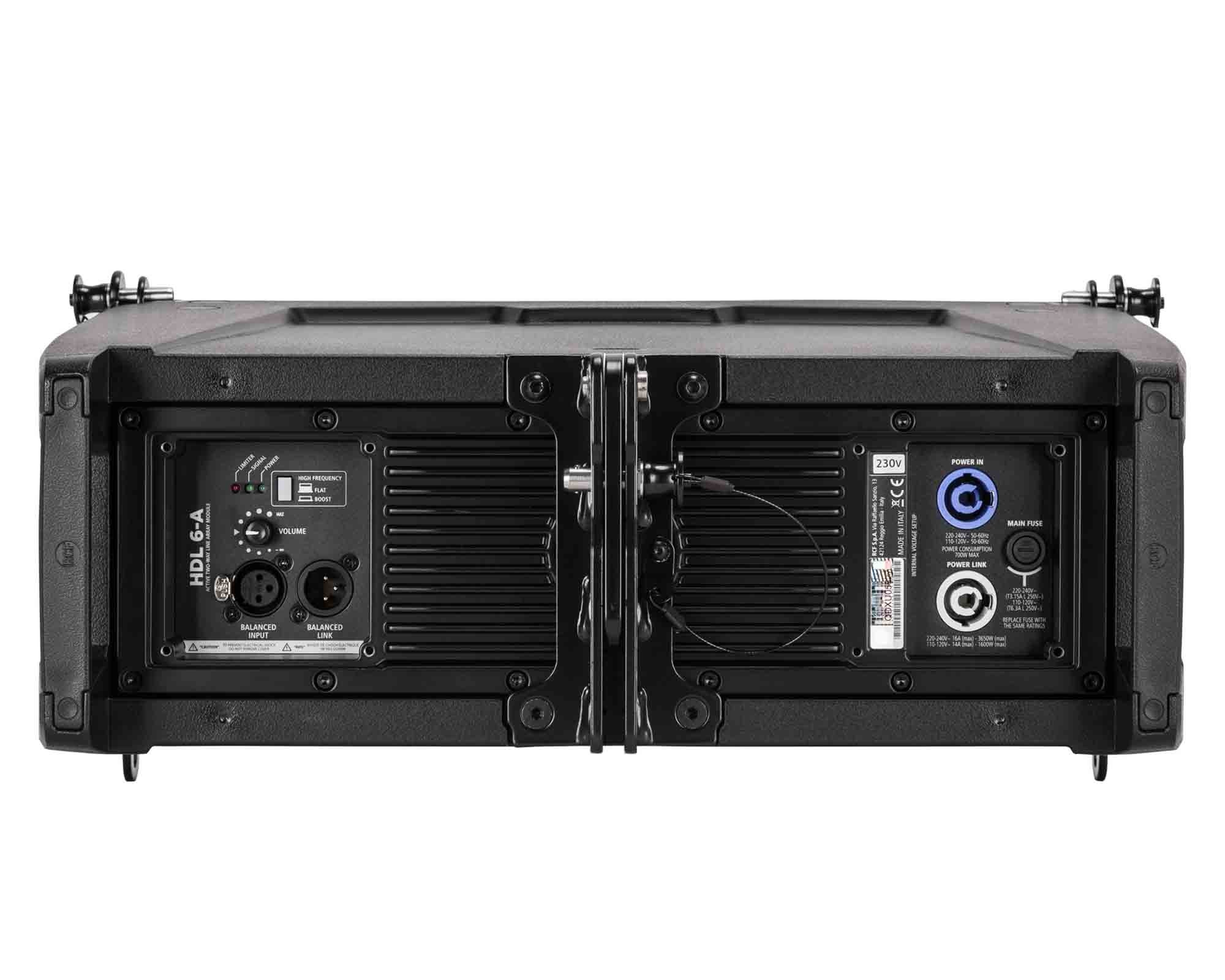

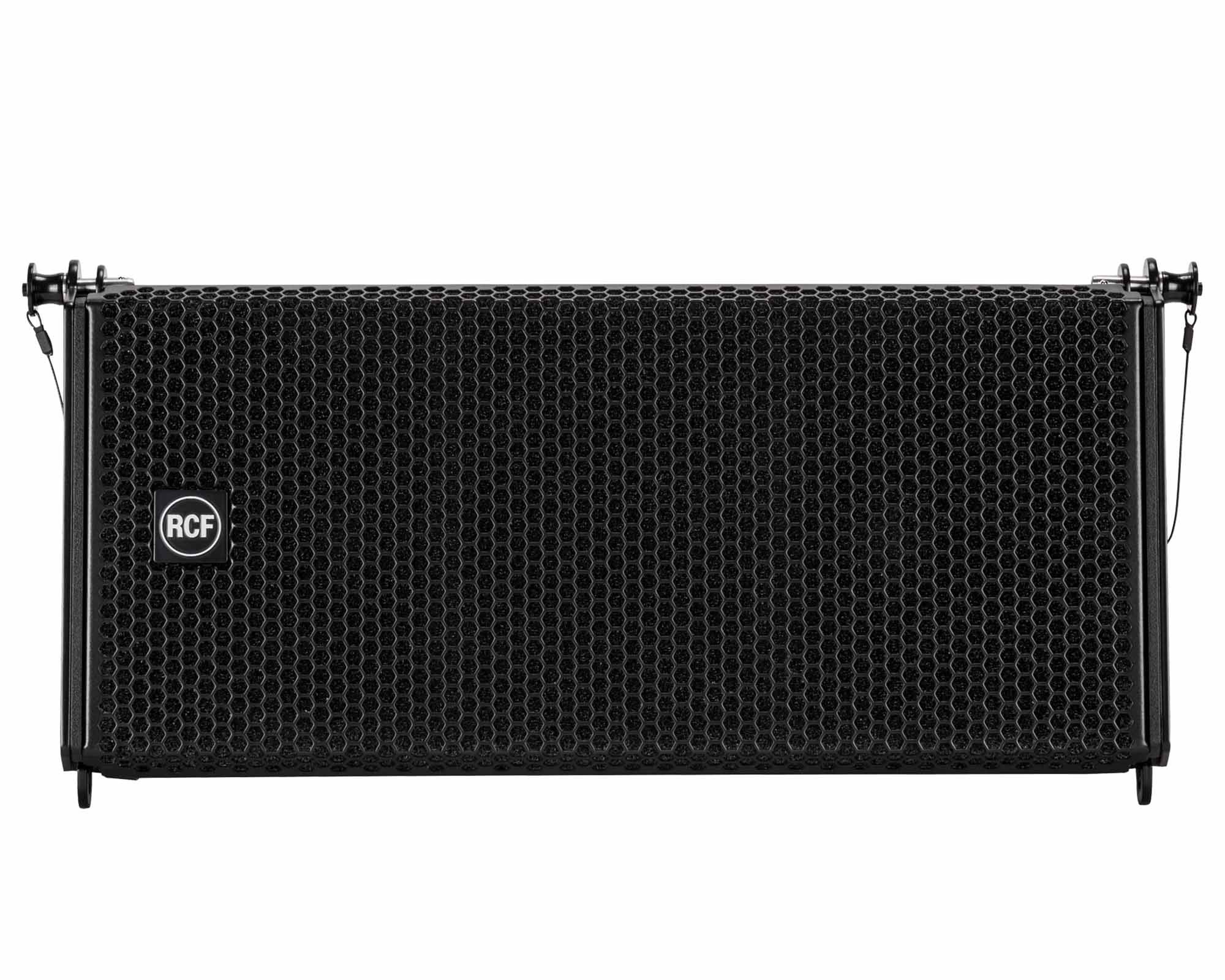

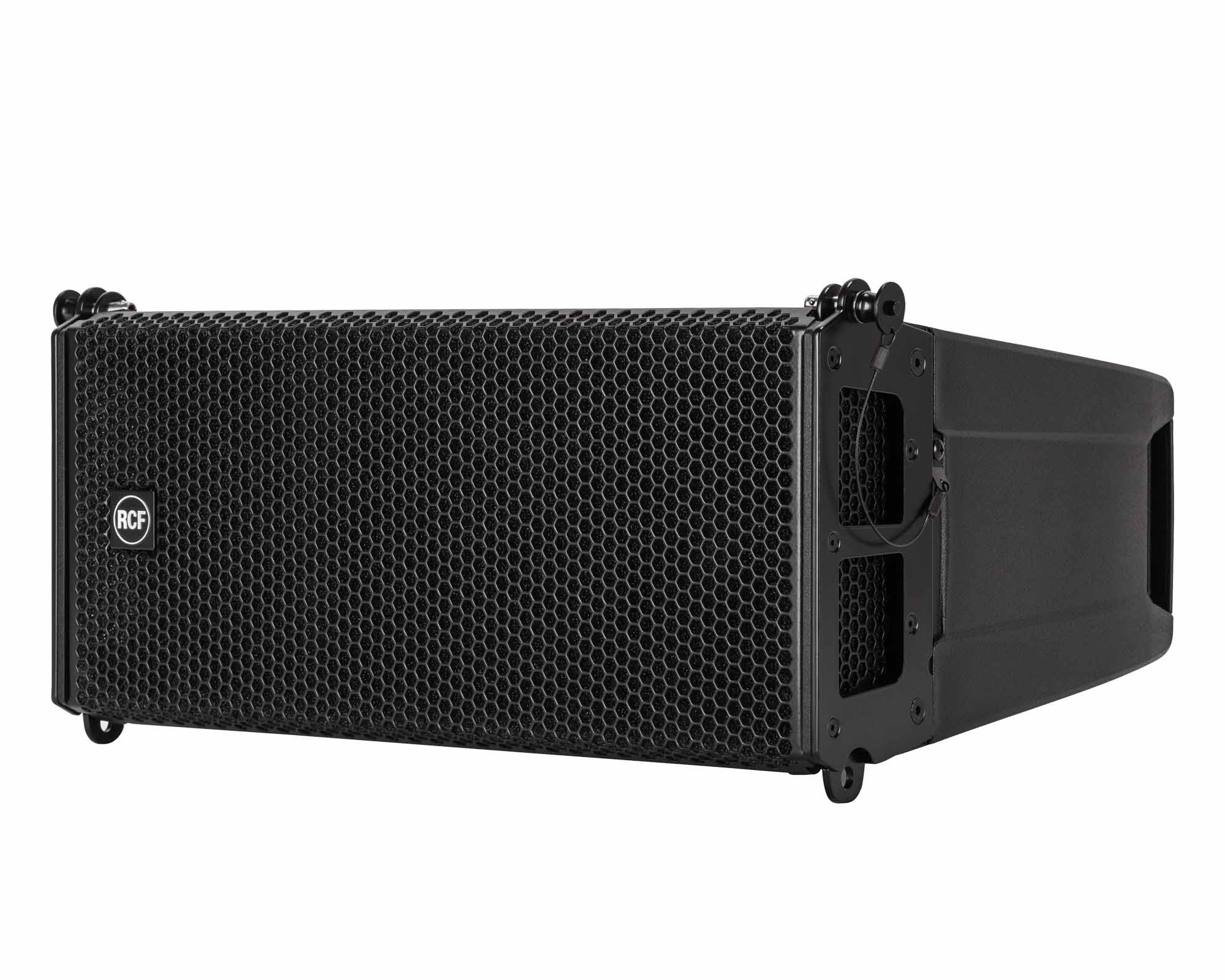

RCF HDL6A 2x6" Active Line Array Module
£1249.95
HDL6A D-Line 2-Way 2x6" Active Line Array Module 700W
The HDL6-A is the ideal choice when line array performance is needed and a fast and easy set-up a must. A 1400 W 2-channel class-D amplifier powers the system. A powerful DSP processes the sound including crossover, phase correction, limiting and protection. The system features state-of-the-art RCF transducers – two powerful 6.0” woofers for a solid bass reproduction plus a high powered 1.7” voice coil compression driver mounted on a precise 100° x 10° waveguide delivers vocal clarity with high definition and an incredible dynamic.
Product Features
1400 W, two-way amplification
131 dB max SPL
1.7" voice coil neodymium compression driver
2 x high power neodymium 6.0" woofers
48 kHz, 32 bit floating point DSP processing
Symmetrical design
Extremely low weight
FiRPHASE processing
Compression Driver: 1.0'' neo, 1.75'' v.c
Woofer: 2 x 6.0'' neo, 2.0'' v.c
Total Power: 1400 W Peak, 700 W RMS
High frequencies: 400 W Peak, 200 W RMS
Low frequencies: 1000 W Peak, 500 W RMS
Max SPL @ 1m: 131 dB
Frequency Response: 65 Hz ÷ 20000 Hz
Horizontal coverage angle: 100°
Vertical coverage angle: 10°
Height: 237mm
Width: 470mm
Depth: 377mm
Weight: 11.6kg
