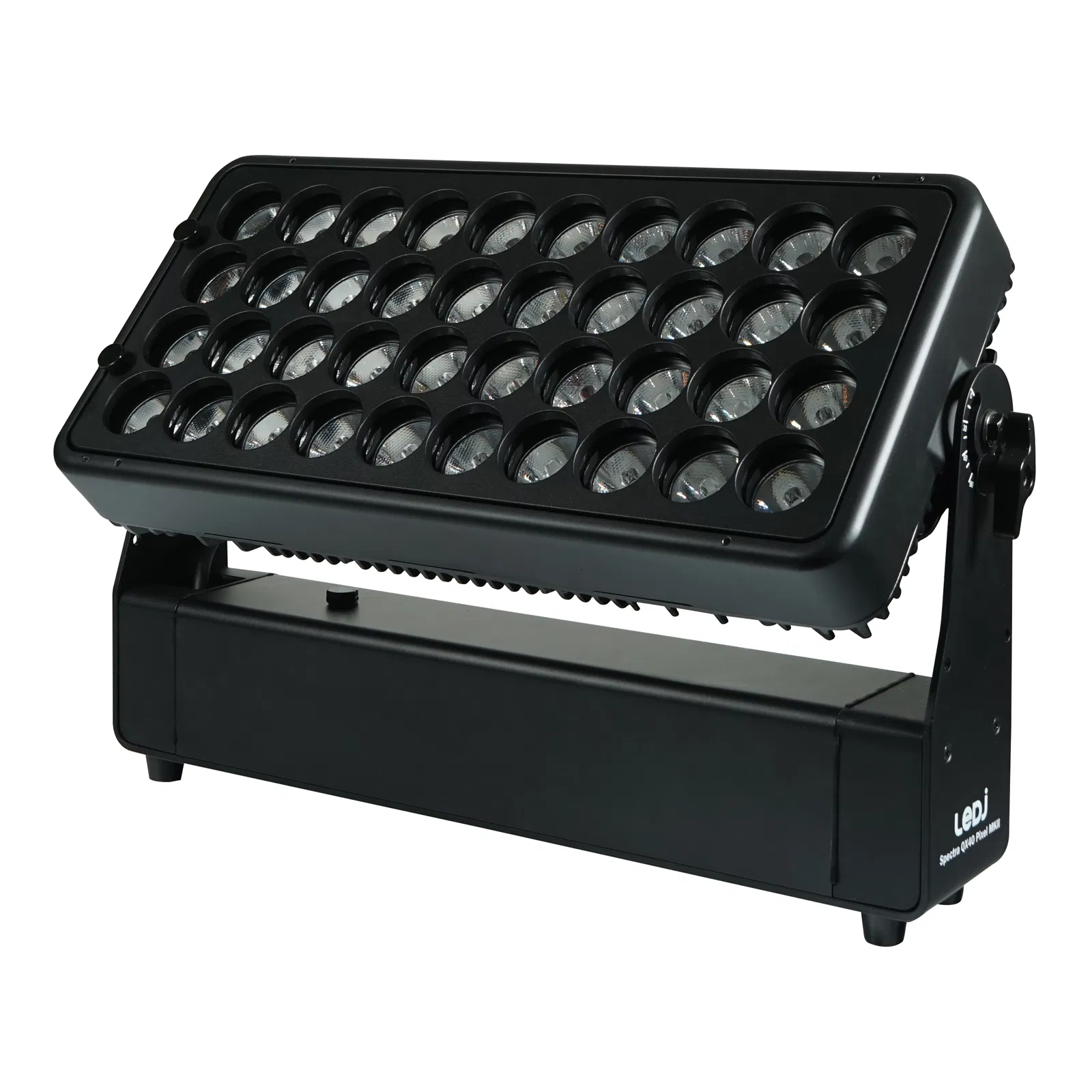

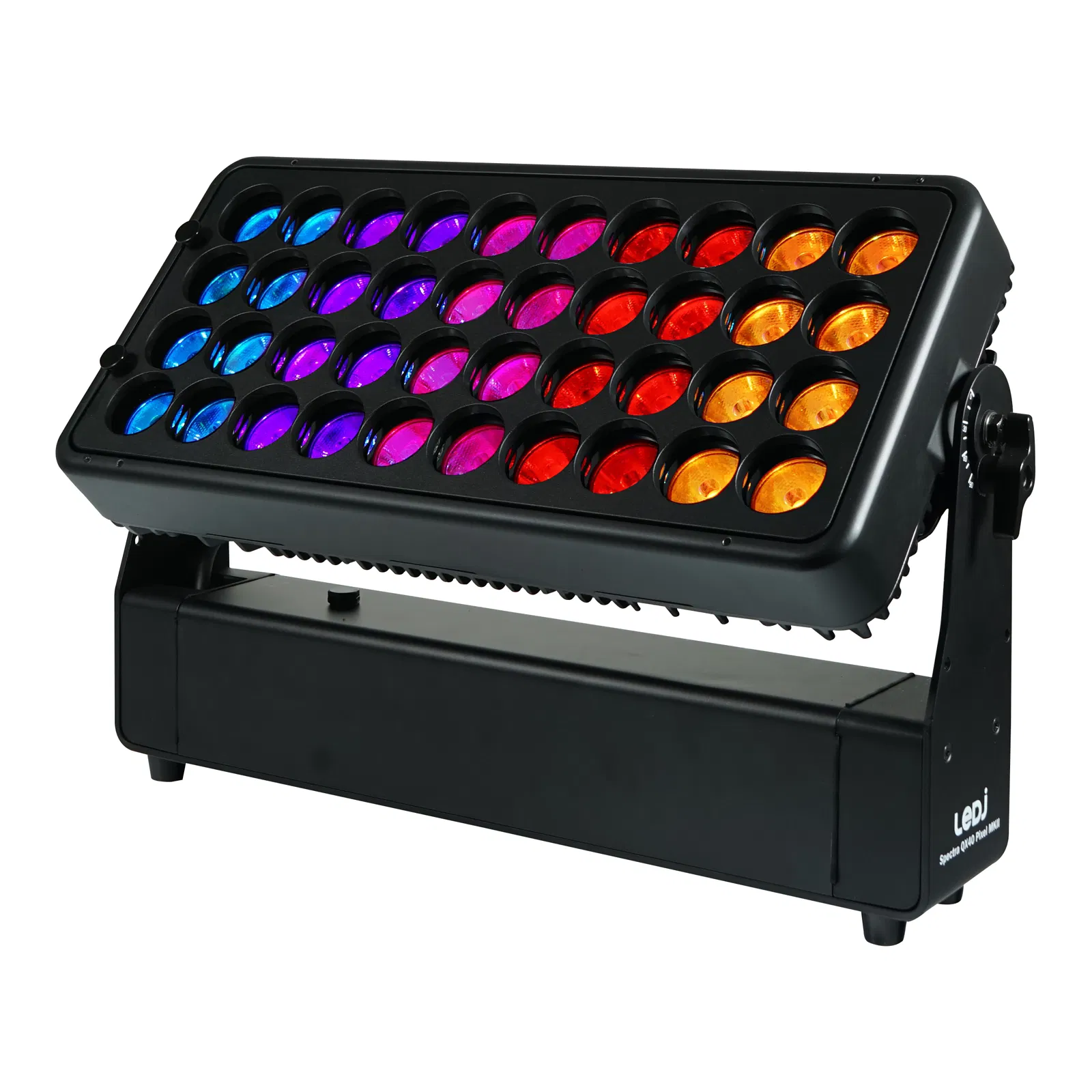

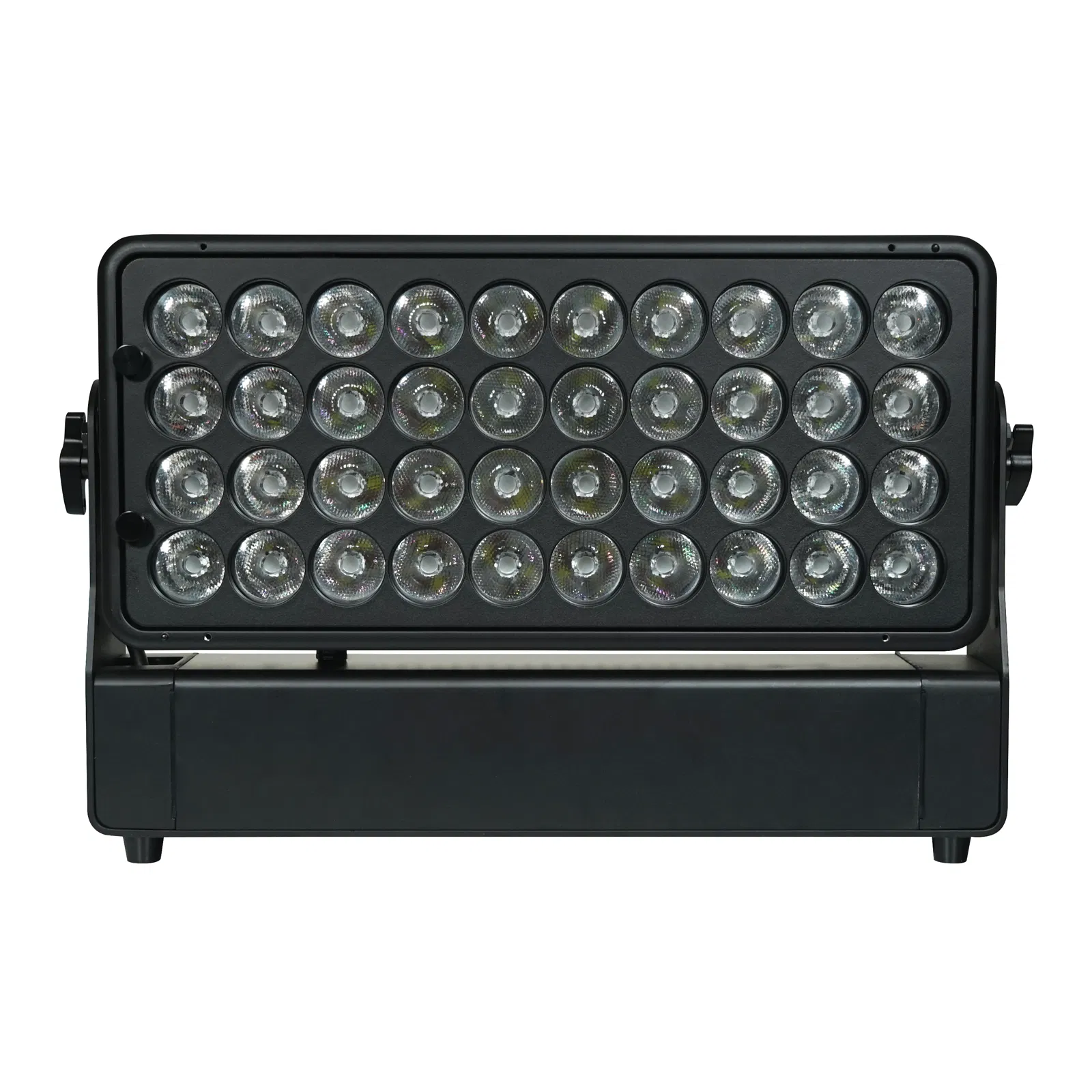

Spectra QX40 Pixel Outdoor Panel

Equipped with 40 x 15W RGBW LEDs, the QX40 is suitable for illuminating event spaces, stages or facades, while the zone control allows lighting designers to create stunning effects. The unit utilises quad-colour LED technology to produce a wide colour spectrum from rich, primary colours through to subtle pastel hues. Designed for rental and events, the QX40 features quick release omega brackets, PowerTwist TR1 connectors for power input/output and also features both wired and wireless DMX by W-DMX Sweden. The slim profile of the fixture is ideally suited for loading into road trunks holding multiple units. A range of optional accessories including beam shaping lenses, snoots and barndoors further widen its applications.

Features

• 40 x 15W quad-colour LEDs (RGBW)

• Beam angle: 8°

• 8° - 67,847 Lux @ 2m (full on)

• Refresh rate: 3kHz

• Pixel zone mapping

• Wireless DMX control by W-DMX Sweden

• DMX channels: 1/3/4/6/9/20 or 25 selectable

• RDM (Remote Device Management)

• Static colour, colour change and colour fade modes

• Master/slave mode when cabled

• 0 - 100% dimming

• 4 dimming curves: Linear, square law, inverse square law and S-curve

• Variable strobe

• Supplied with installation bracket and quick release omega clamps

• 4 button menu with OLED display

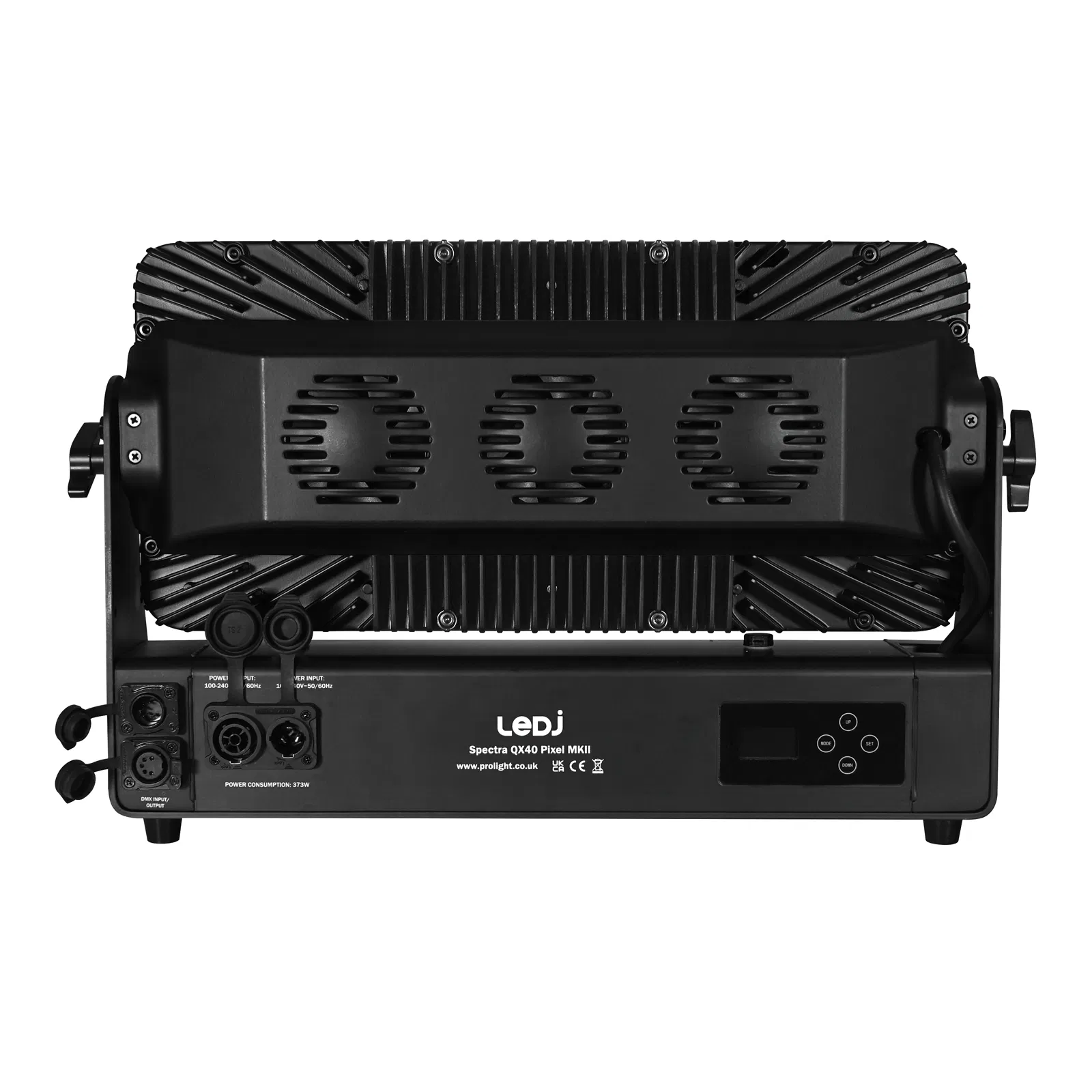

• PowerTwist TR1 input/output

• IP rated 5-Pin XLR input/output

• Fan cooled
