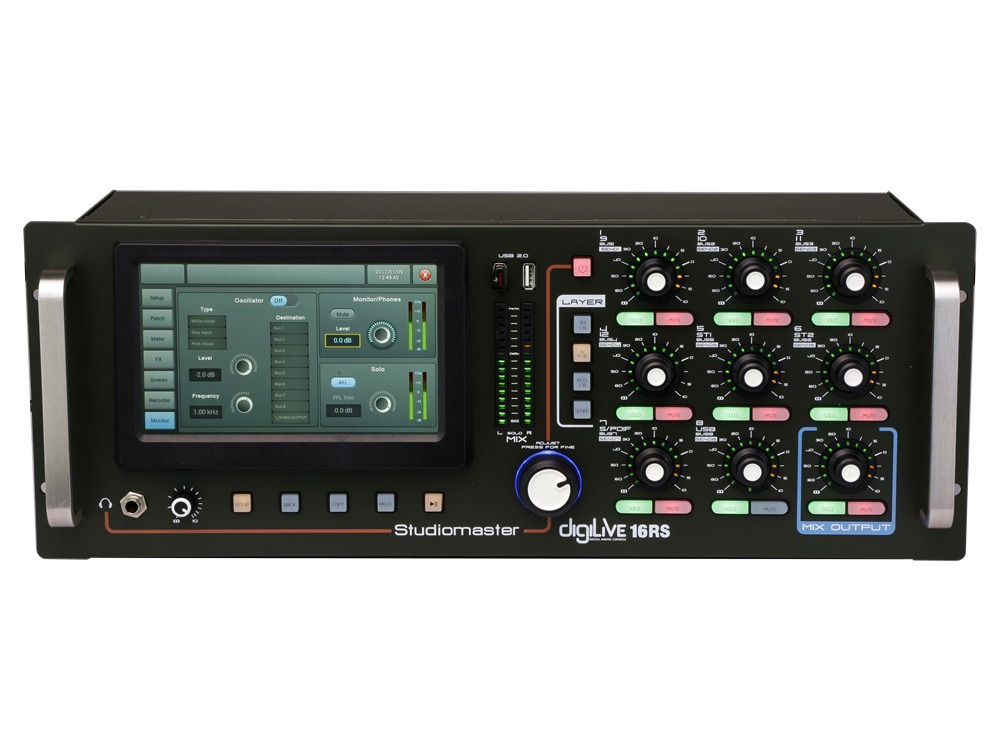

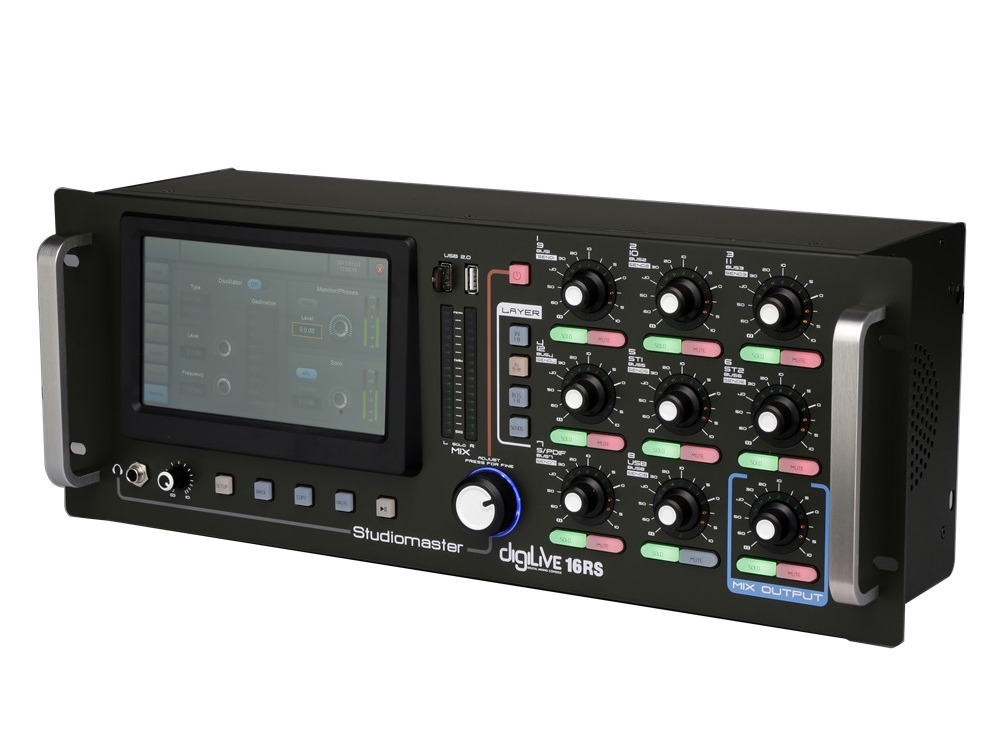

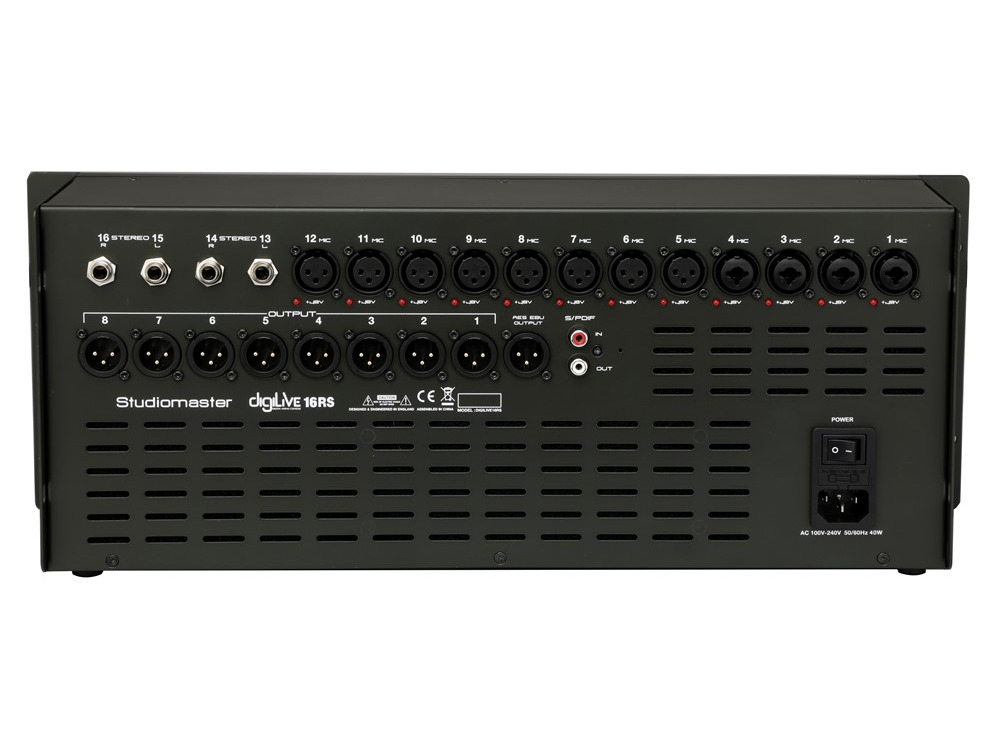

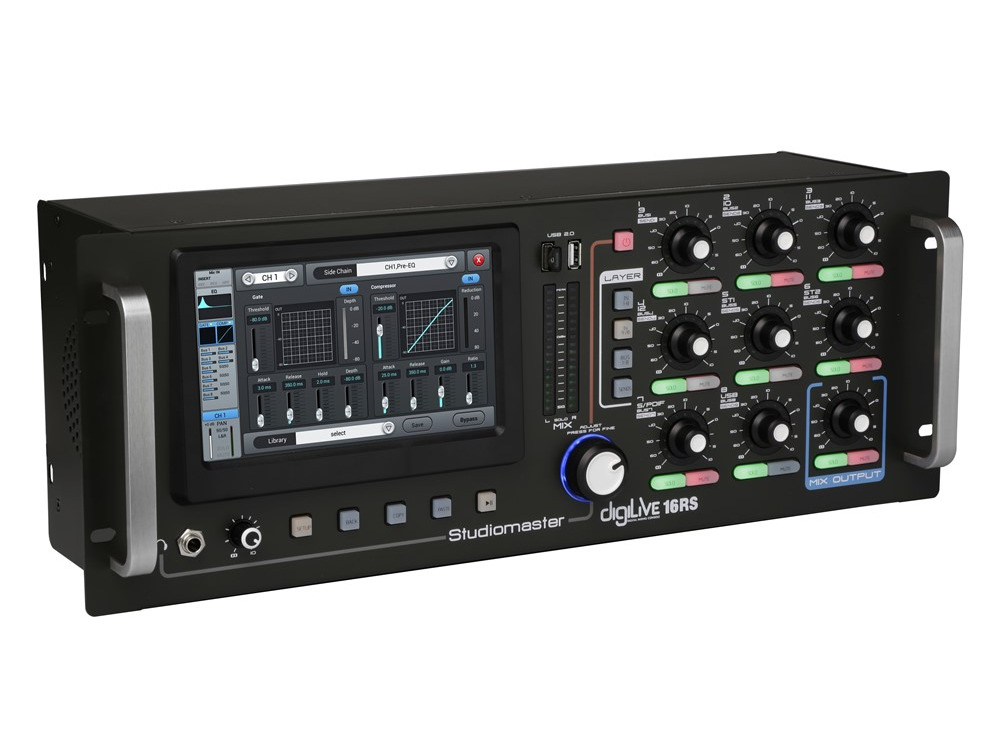

Studiomaster DigiLive 16RS

The Studiomaster Digilive 16RS Digital Rack Mixer combines Studiomaster's experience in live signal processing with the latest technology, creating an intuitive and versatile mixing console that is perfect for any live or installation application.

The Studiomaster Digilive 16RS features 16 inputs with 16 internal busses, including 12 microphone inputs with digital gain control, 8 assignable ''smart'' outputs and multiple digital outputs. Controllable via either the onboard 7'' touchscreen display or via Wi-Fi using an iOS tablet, the Digilive 16RS mixer provides an intuitive and hands-on mixing experience with complete control over every aspect of your sound.

• Mic Inputs:  12 (8x XLR / 4x Combo XLR)

• Stereo Inputs:  2

• Master Output:  2 (Left/Right balanced XLR)

• Smart Outputs:  6 (assignable balanced XLR)

• Internal busses:  16

• Stage monitor:  1 TRS Jack output

• Headphone:  1 TRS Jack output

• Screen:  7″ high definition touch screen

• Operation system:  Android system

• Network:  Yes, via included WiFi module

• Remote control:  iPad iOS via ‘Digilive Blackbox’ app

• Sample Frequency:  48 KHz

• AD/DA:  192 KHz, 24-bit

• DSP:  40 bit float point, SHARC processor

• Effects:  up to 8 assignable effect modules

• AES/EBU:  Output XLR

• S/PDIF:  Input / Output (RCA Phono)

• USB Interface:  2 for playback/recording, scene/setting storage and system updates
