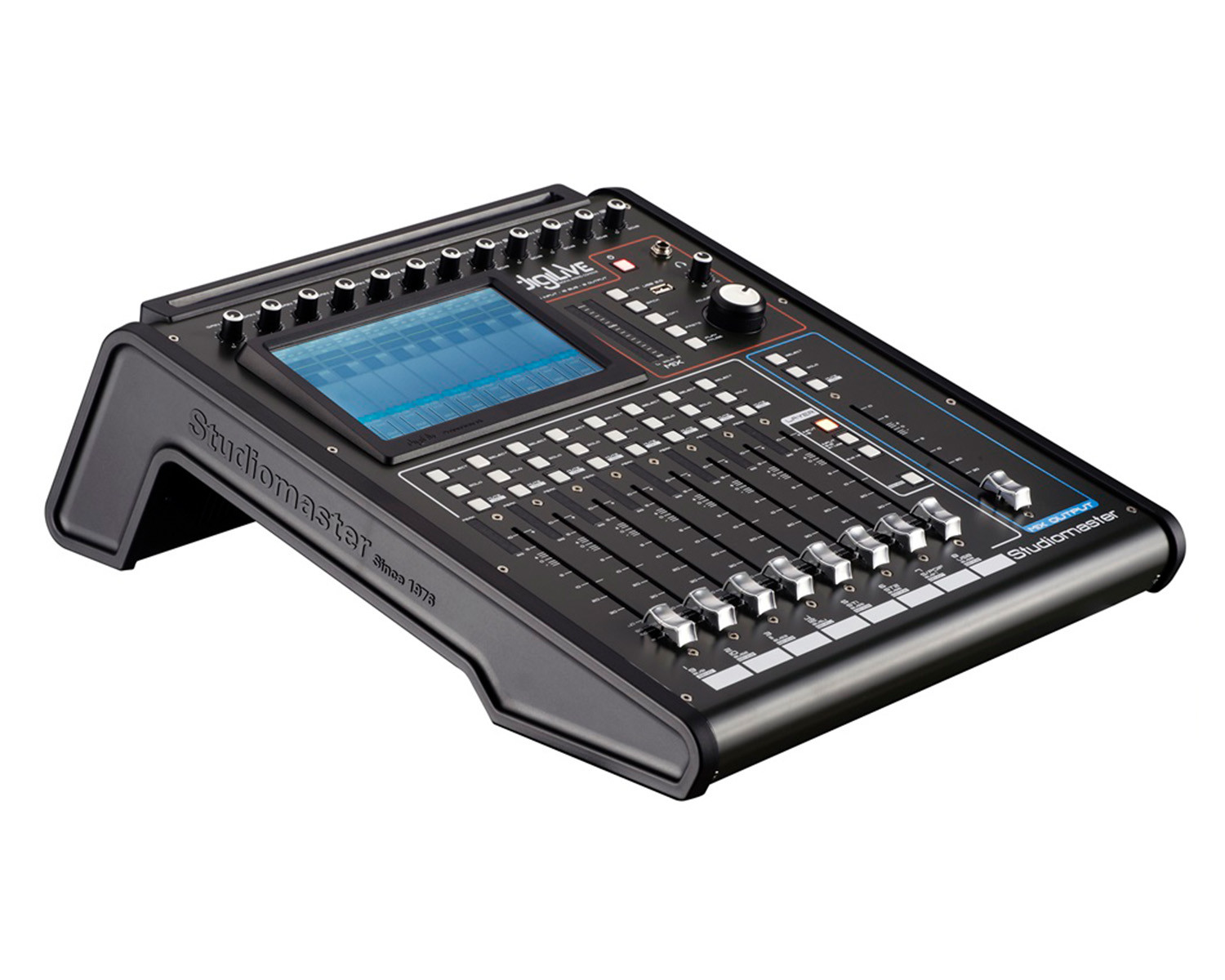

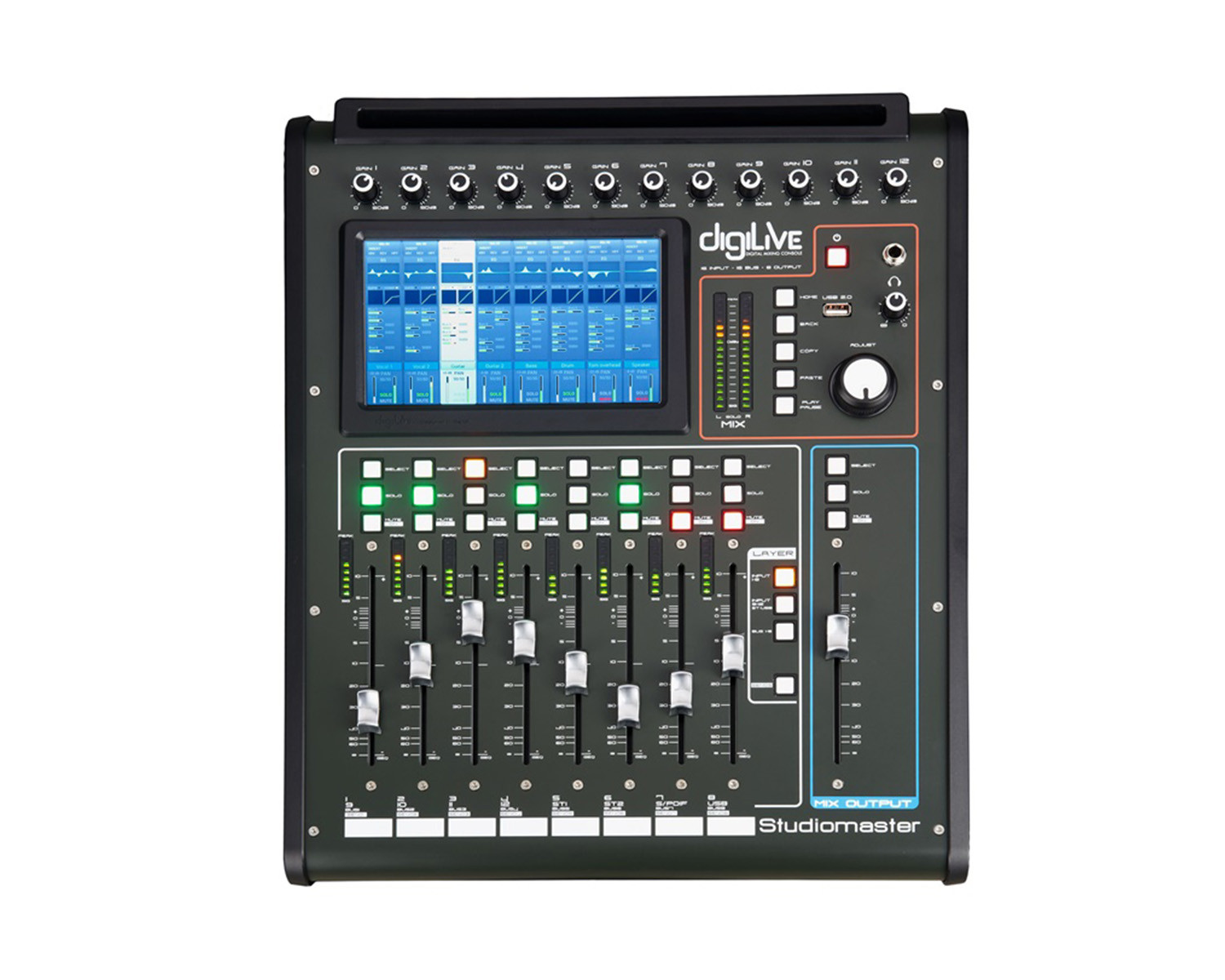

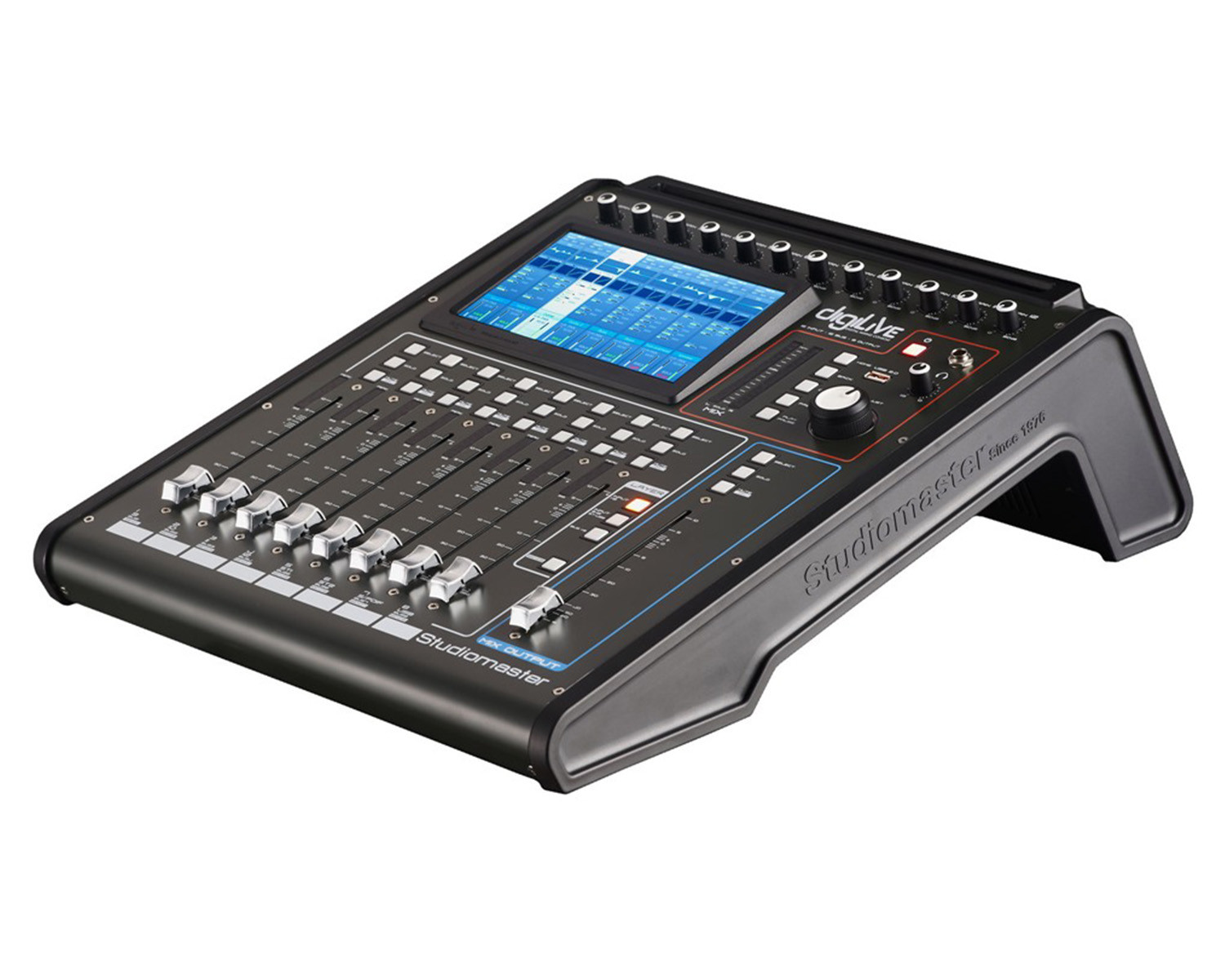

Studiomaster DigiLive16 Digital Mixer

The New DigiLive 16 digital console is the culmination of years of research and development. It ticks every box for Functionality, Audio Excellence and Ease Of Use.

The Ultra Compact design hides a feature rich solution for every mixing application and the inclusion of eight 100mm motorised faders, a comprehensive DSP section and scene selection makes digital mixing effortless.

The 12 analogue inputs with superior microphone preamps are routed and controlled using hardware buttons, 7" high res touch screen or via an Android or iPhone App.

Mixing has never been so easy or affordable.

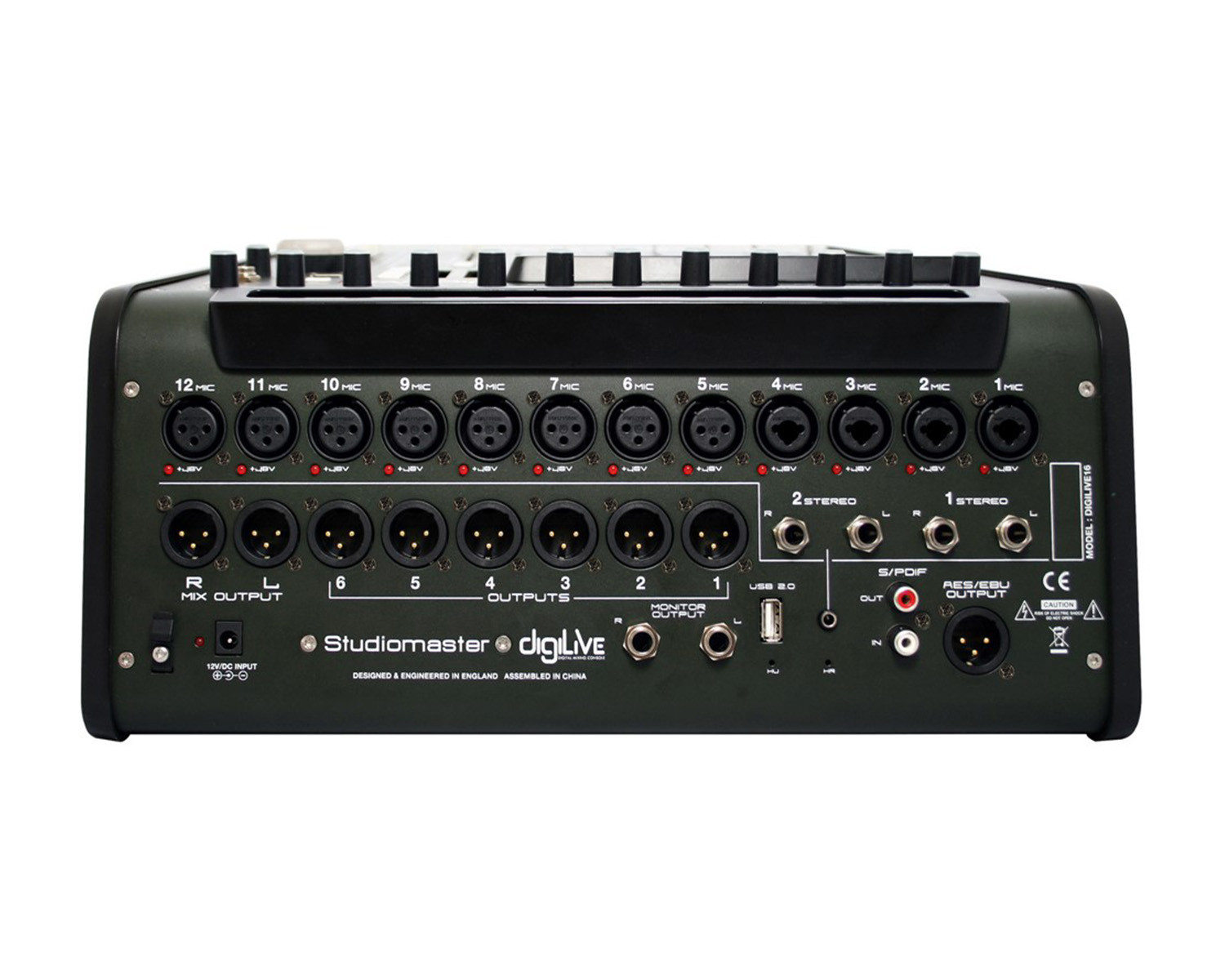

• Mic Inputs:  12 (8x XLR / 4x Combo XLR)

• Stereo Inputs:  2

• Master Output:  2 (Left/Right balanced XLR)

• Smart Outputs:  6 (assignable balanced XLR)

• Internal busses:  16

• Stage monitor:  1 TRS Jack output

• Headphone:  1 TRS Jack output

• Screen:  7″ high definition touch screen

• Faders:  8x motorised 100mm channel faders + 1x motorised 100mm master L/R mix

• Operation system:  Android system

• Network:  Yes, via included WiFi module

• Remote control:  iPad iOS via ‘Digilive Blackbox’ app

• Sample Frequency:  48 KHz

• AD/DA:  192 KHz, 24-bit

• DSP:  40 bit float point, SHARC processor

• Effects:  up to 8 assignable effect modules

• AES/EBU:  Output XLR

• S/PDIF:  Input / Output (RCA Phono)

• USB Interface:  2 for playback/recording, scene/setting storage and system updates

• Power Supply:  90-240V ~ 50/60Hz power supply 12VDC
