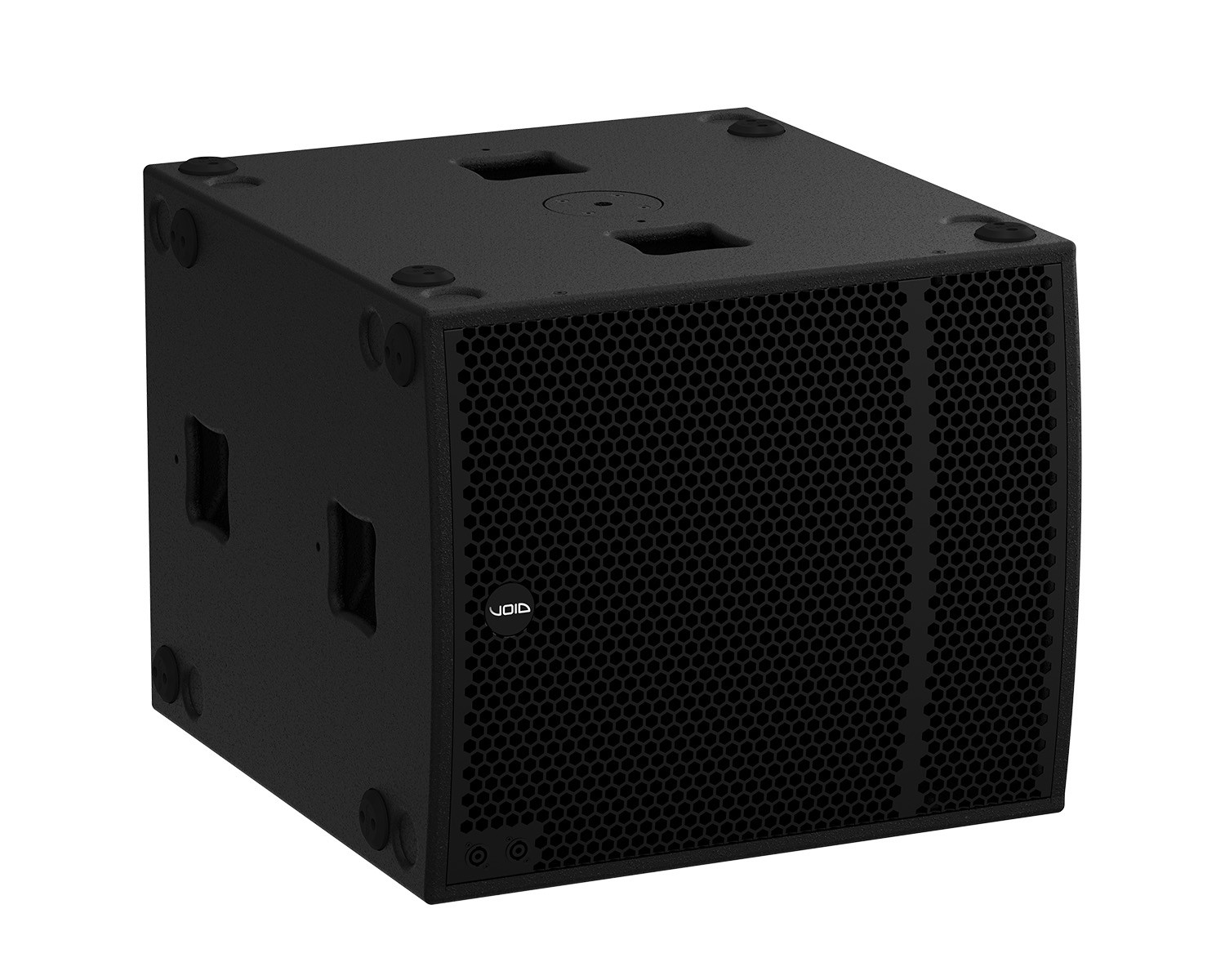

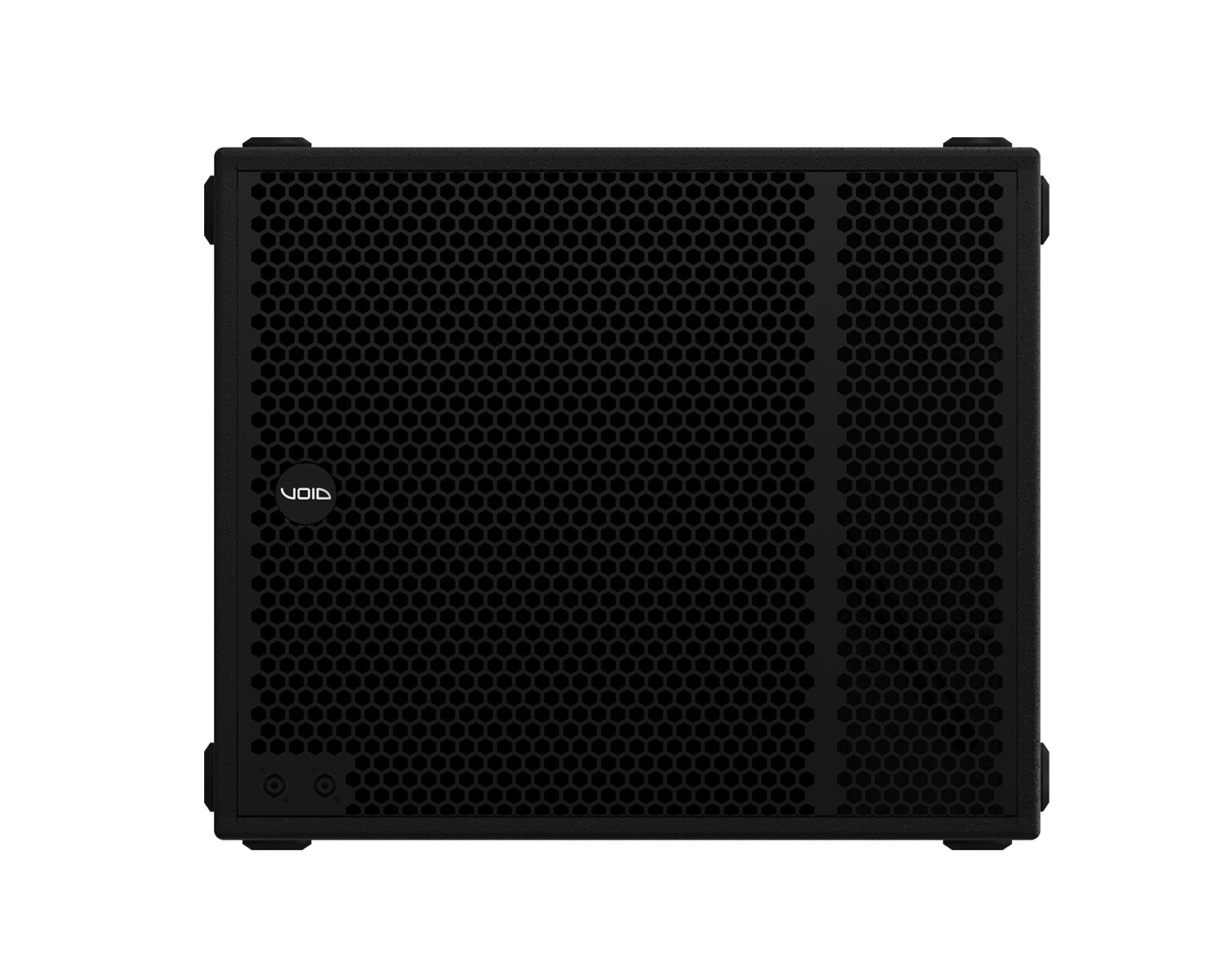

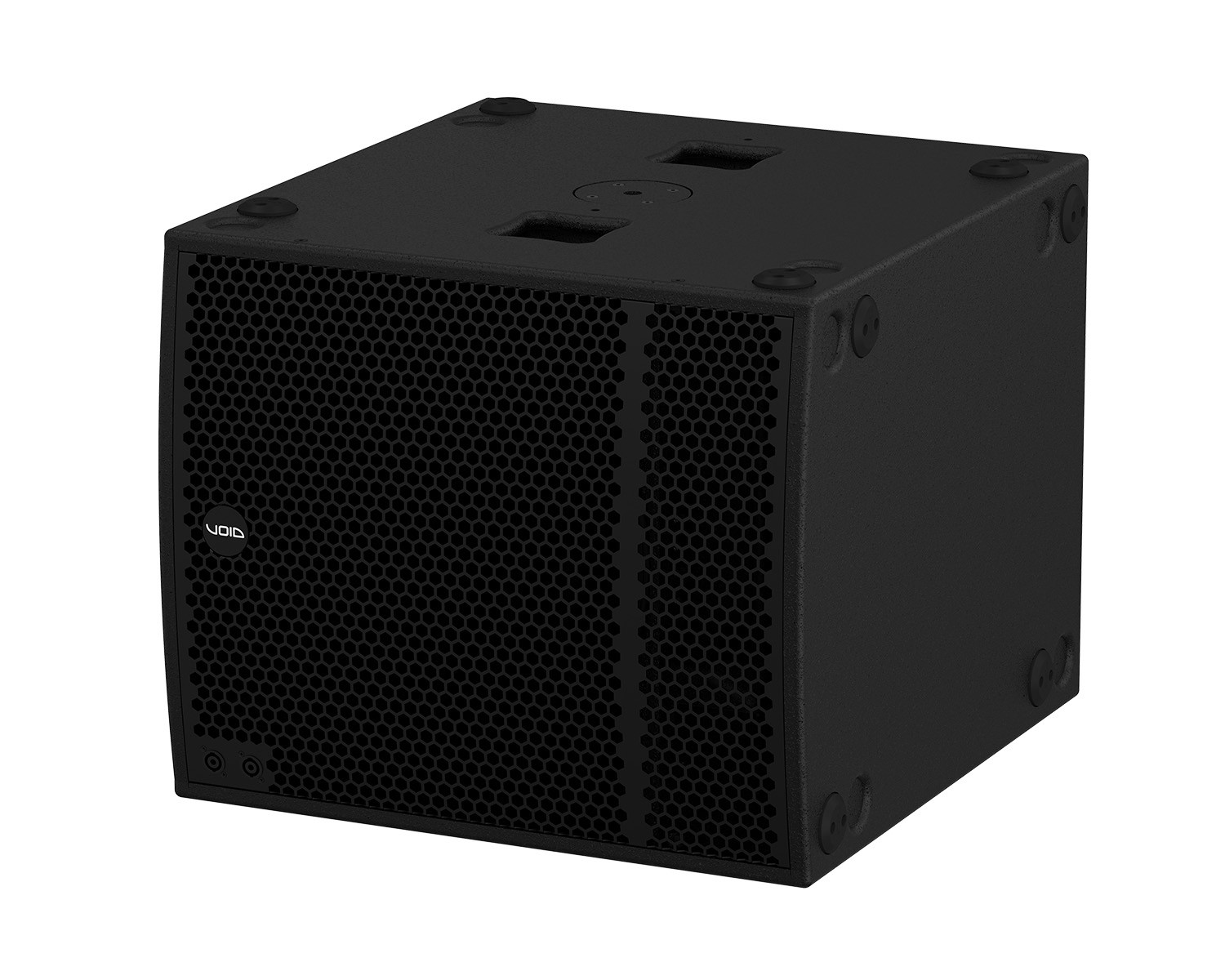

VOID Acoustics Arcline 118 1x18" Subwoofer £POA.
Arcline 118 18" High-Power Line Array Element 1500W - Black
As a new addition to the Arcline family, the Arcline 118 enhances our line array enclosure offering and is optimised for use in theatres, event spaces and outdoor areas. Developed using extensive Finite Element Analysis (FEA) modelling, the result is maximum performance from the smallest footprint. This FEA modelled hyperboloid porting also significantly reduces port noise and air distortion, while the advanced internal brace design brings a noticeable weight reduction and increased cabinet rigidity.
Arrayable with the Arcline 218 in multiple configurations, including cardioid, this brings a new level of versatility to the audio arena. Aesthetically-pleasing cable management when running in cardioid configuration is also now possible with the front speakON™ chassis. If manpower is limited for the setup, an Arcline system can be arrayed by one person independently and given that each Arcline product can be cased and transported in multiples, this radically reduces setup time. The subs have been specifically designed with the ease of touring in mind, with advantageous features including: ergonomic handle cup design; external dimensions optimised for truck packing; and a hardwearing polyurea finish for a long life on the road.
The marriage of a technologically advanced enclosure with esoteric transducer performance applied with superlative tuning techniques has resulted in a phenomenal package with state-of-the-art performance that has well and truly left tradition behind.
Contact us for pricing: £POA.
Driver Configuration: 1 x 18” LF
Power Handling: 1500 W AES
Maximum Output: 129 dB cont, 135 dB peak
Nominal Impedance: 8 Ω
Frequency Response: 32 Hz - 200 Hz ±3dB
Efficiency: 97 dB 1W/1m
Front: 2 x 4-pole speakON™ NL4

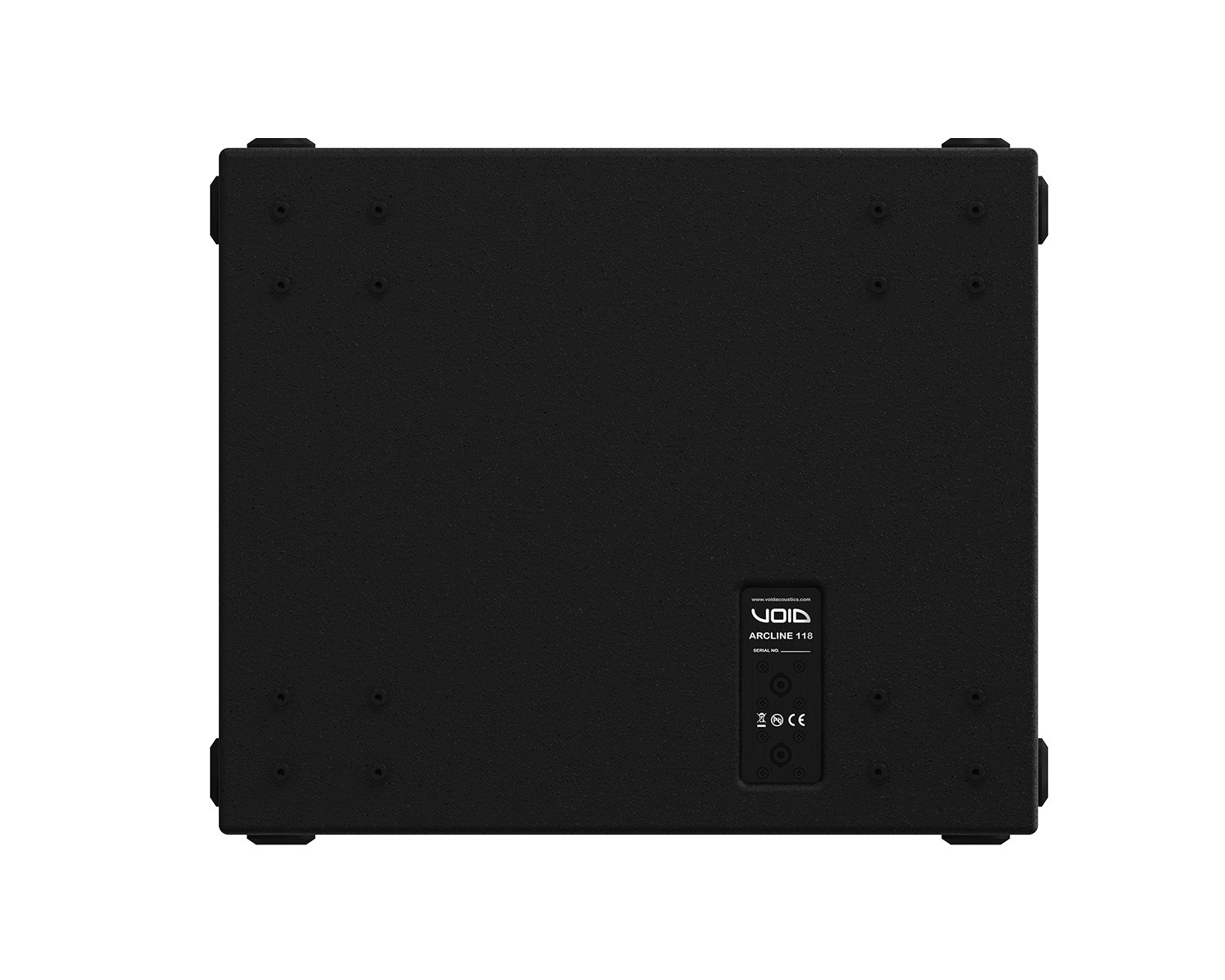

Rear: 2 x 4-pole speakON™ NL4
Dimensions: (H) 550 mm x (W) 656 mm x (D) 695 mm (21.7” x 25.8” x 27.4”)
Weight: 55 kg (121.3 lbs)
Enclosure: 18 mm birch plywood
