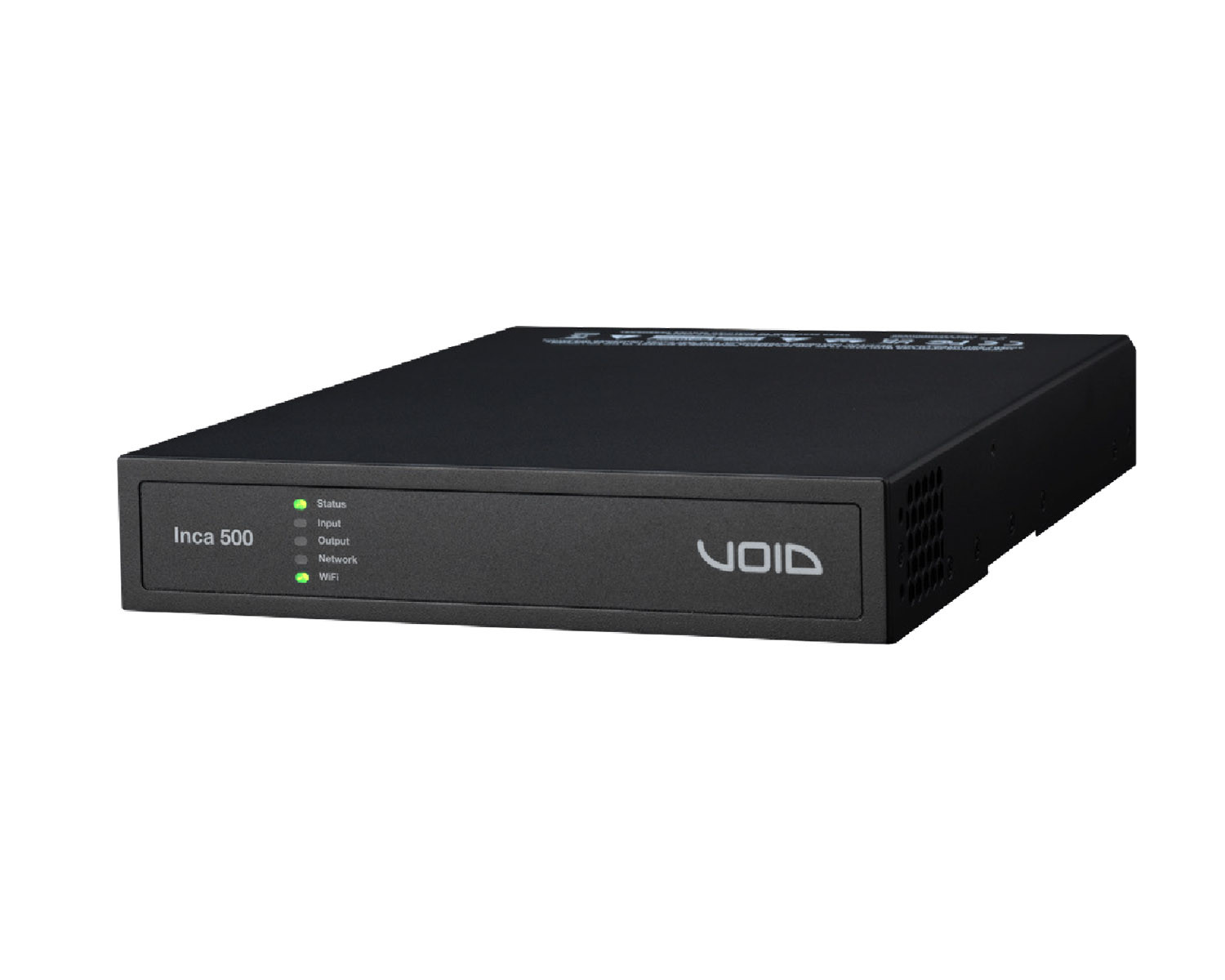

VOID Inca 500 Power Amplifier
£1195.00
The Inca 500 amplifier is a half rack width, 1U format power amplifier that can drive both conventional low impedance (Low-Z, 4Ω to 16Ω) loudspeakers and high impedance (Hi-Z, 70V/100V) transformer coupled loudspeakers. The Inca 500 provides four analogue inputs, one stereo S/PDIF digital input, and four outputs (Low-Z mode) or two outputs (Hi-Z mode). It is capable of a maximum output of 125 Watts per channel into Low-Z loads or 250 Watts per channel into Hi-Z loads. The Inca 500 also incorporates automatic power-sharing technology that enables 250 Watts to be shared proportionately as required across each output pair in Low-Z mode and the two outputs in Hi-Z mode.
Product Features
Full matrix DSP embedded and controlled via TCP/IP
Master / Slave functionality – S/PDIF link to multiple amps
Market proven reliability
Automatic power-sharing
Small size with flexible mounting
Total System Power: 500W
Total System Power: 500 W
Output Power @ 4/8Ω: 4 x 125 W
Output Power @ 70/100V: 2 x 250 W
Powershare (up to) Across all channels: 2 x 250 W
Output Voltage: 70Vp / 140Vpp (unloaded) // Bridged 140Vp / 280 Vpp (unloaded)
Frequency Response 20Hz-20kHz (+0/-0.25dB) (8Ω load, 3dB below rated power)
Signal To Noise-Ratio: >106dB (A-weighted, 20Hz-20kHz, 8Ω load)
Output Circuitry: UMAC™ Class D - full bandwidth PWM modulator with ultra-low distortion
THD+N (typical): < 0.05% (20Hz-20kHz, 8Ω load, 3dB below rated power)
Protection Circuits: Short circuit -, DC -, Undervoltage -, Temperature - and Overload protection
Dimensions: 44 x 220 x 319 mm (1.7 x 8.7 x 12.6 in)
Weight: 2.8kg (6.2 lbs)
